High Silicon Chromium Cast Iron (HSCI) Anodes

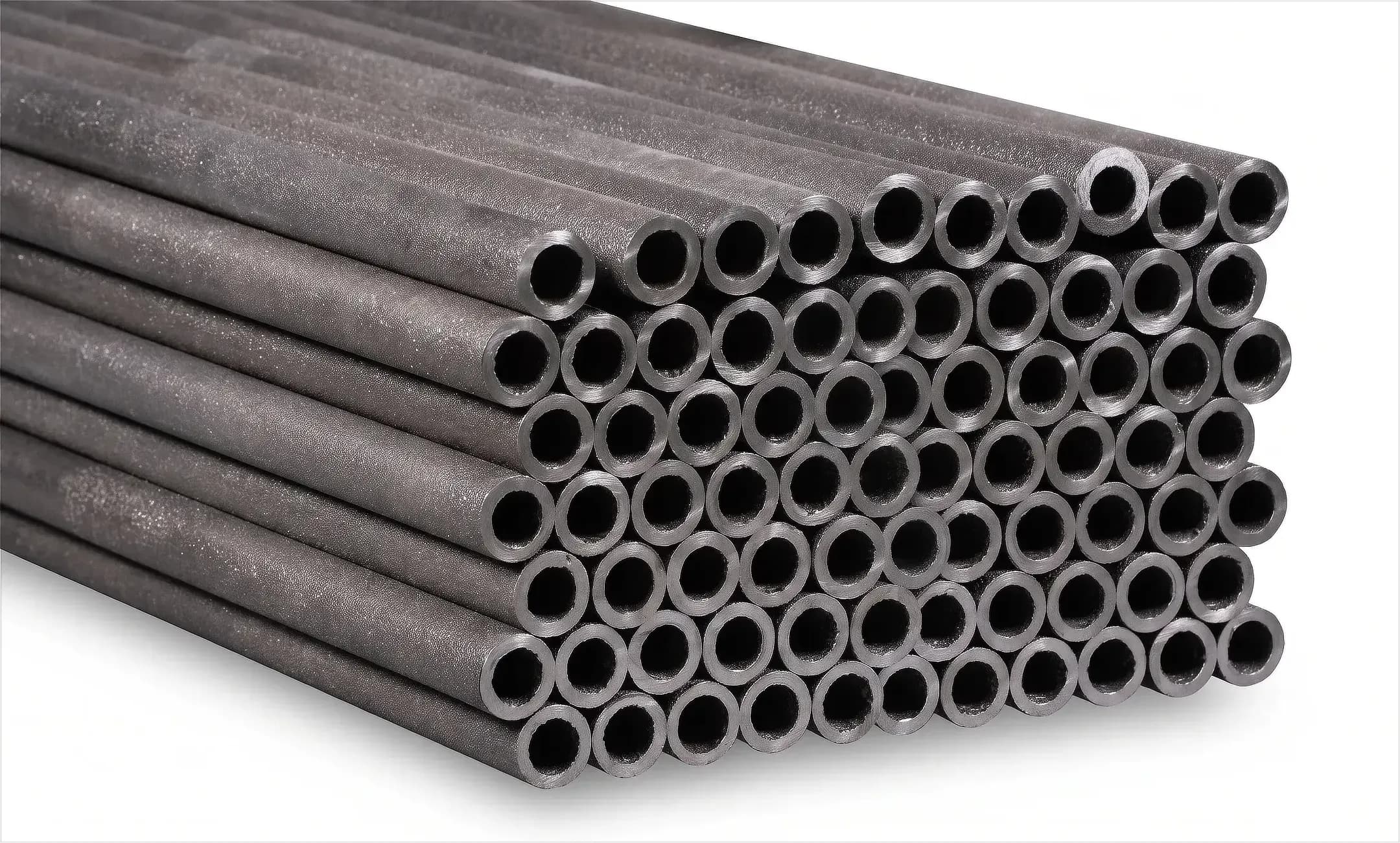

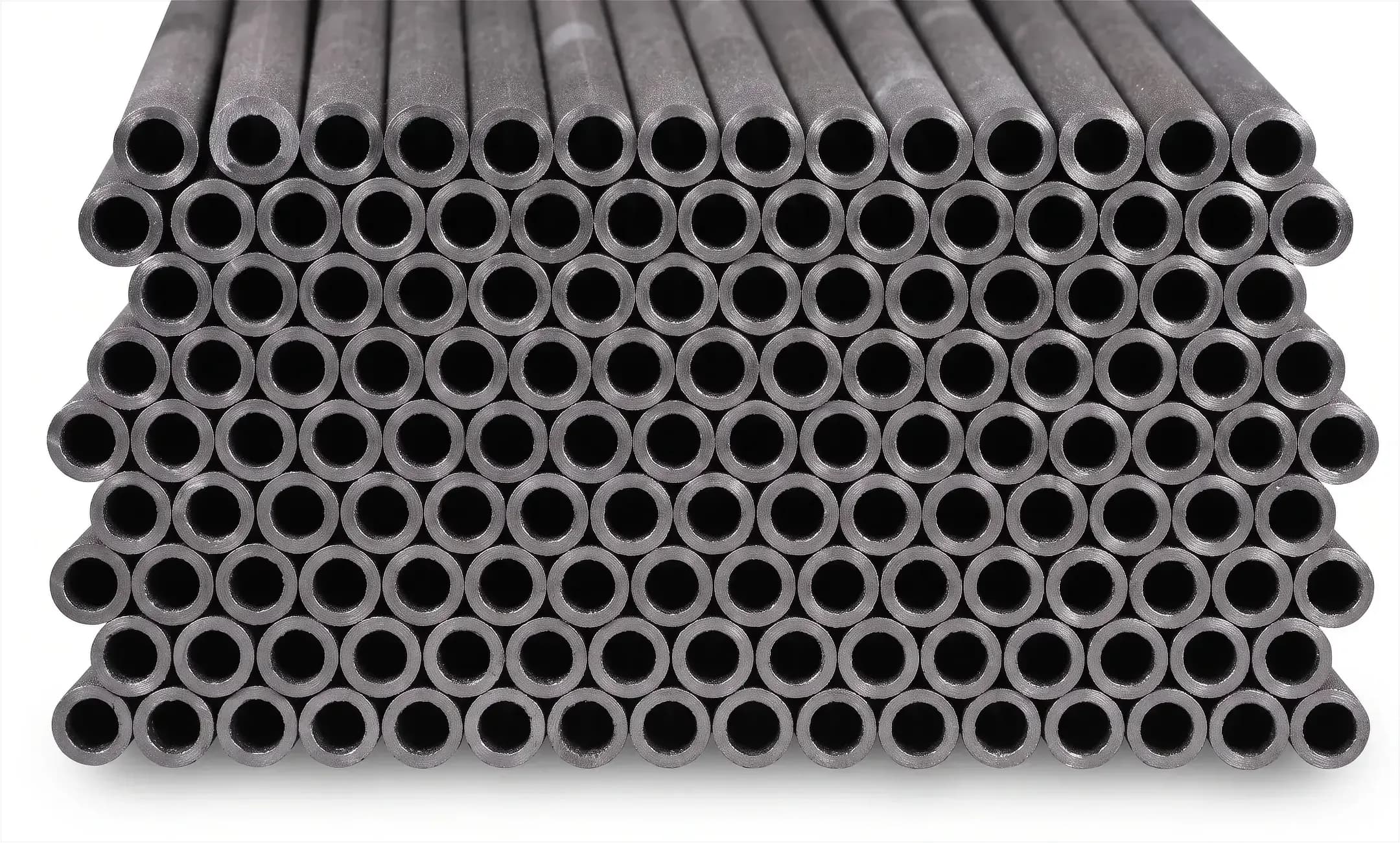

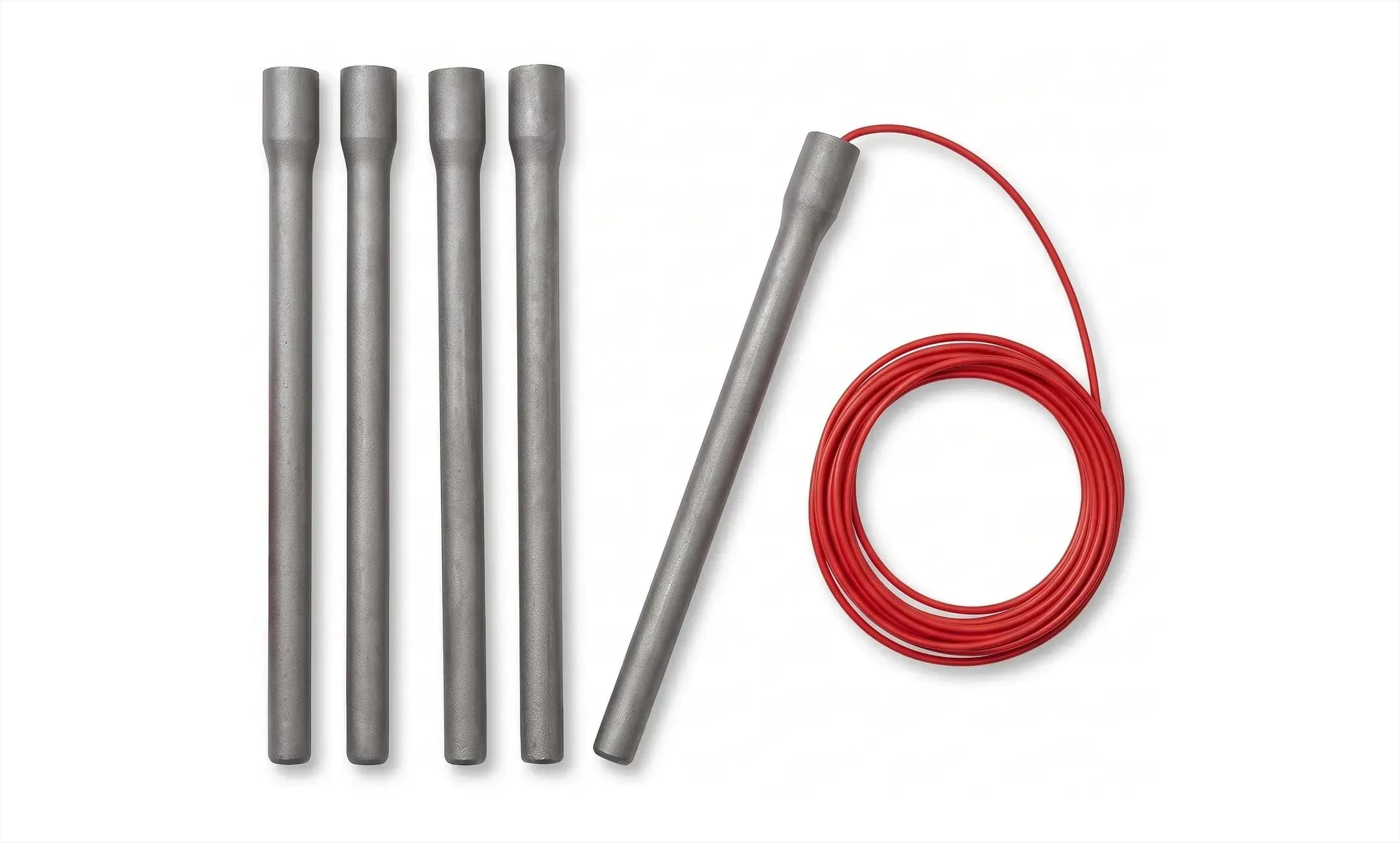

BSS Technologies supplies heavy-duty High Silicon Cast Iron (HSCI) Anodes, manufactured in solid stick rod and chill-cast hollow tubular profiles for reliable long-term ground bed performance in soils, deep wells, fresh water, and marine mud environments.
HSCI Anodes for Aggressive Soil and Marine Ground Beds
Protecting buried pipelines, tank farms, and deep boreholes in variable soils requires an anode built for stability. We engineer our High Silicon Chromium Iron (HSCI) anodes to form a protective silicon dioxide and chromium oxide film during operation. This self-protecting mechanism ensures exceptionally low wear rates and a maintenance-free design life exceeding 30 years.
What is High Silicon Iron Anode?
High Silicon Cast Iron (HSCI) anodes are built for demanding ground and marine conditions. The alloy uses high silicon content to prevent soil corrosion, while added chromium stops pitting in chloride-rich environments like brackish water and marine mud. Once energized, the anode builds a conductive oxide film that lets current flow freely while shielding the solid metal core from rapid wear.
Thanks to their heavy physical mass, HSCI anodes perform reliably in shallow trenches, deep wells, and seawater intakes. They maintain exceptionally low consumption rates, usually between 0.10 and 0.30 kg per Ampere-year depending on the backfill. This proven durability makes them a highly cost-effective solution for major infrastructure projects.
Targeted High Silicon Iron Anode Use Cases
High Silicon Chromium Cast Iron (HSCI) anodes are exceptionally versatile, engineered to perform reliably across both onshore soils and demanding aquatic environments. Their rugged, heavy-duty construction makes them a standard choice for protecting large-scale industrial and marine assets.
From deep boreholes securing tank farm foundations to direct seabed deployments protecting harbour sheet piling, HSCI anodes deliver stable, localized current exactly where it is needed. This adaptability makes them highly effective for congested refineries and complex freshwater intakes, ensuring comprehensive corrosion control without the risk of stray current interference.
Your corrosion challenges are our expertise,
Trust the industry leader in cathodic protection
Technical Specifications & Operating Parameters
Review the core technical parameters of our High Silicon Cast Iron (HSCI) anodes. These specifications cover alloy compositions, standard dimensions, and current density limits to help you properly size your ground beds and marine installations.
Chemical Element | High Silicon Chromium Alloy (ASTM A518 / A518M Grade 3) | Standard High Silicon Alloy (ASTM A518 / A518M Grade 1) |
|---|---|---|
Silicon (Si) | 14.20% - 14.75% | 14.20% - 14.75% |
Chromium (Cr) | 3.25% - 5.00% | 0.50% max |
Carbon (C) | 0.70% - 1.10% | 0.70% - 1.10% |
Manganese (Mn) | 0.40% - 1.00% | 0.40% - 1.00% |
Copper (Cu) | 0.50% max | 0.50% max |
Molybdenum (Mo) | 0.20% max | 0.20% max |
Phosphorus (P) | 0.25% max | 0.25% max |
Sulphur (S) | 0.10% max | 0.10% max |
Iron (Fe) | Remainder | Remainder |
Chemical Element | High Silicon Chromium Alloy (ASTM A518 / A518M Grade 3) | Standard High Silicon Alloy (ASTM A518 / A518M Grade 1) |
|---|---|---|
Silicon (Si) | 14.20% - 14.75% | 14.20% - 14.75% |
Chromium (Cr) | 3.25% - 5.00% | 0.50% max |
Carbon (C) | 0.70% - 1.10% | 0.70% - 1.10% |
Manganese (Mn) | 0.40% - 1.00% | 0.40% - 1.00% |
Copper (Cu) | 0.50% max | 0.50% max |
Molybdenum (Mo) | 0.20% max | 0.20% max |
Phosphorus (P) | 0.25% max | 0.25% max |
Sulphur (S) | 0.10% max | 0.10% max |
Iron (Fe) | Remainder | Remainder |
Key Engineering Advantages of BSS Tech HSCI Anodes
Self-Healing SiO2/Cr2O3 Surface Film
Electrochemical passivation forms a protective oxide barrier that lowers consumption to 0.10-0.30 kg/A-year.
High Physical Mass Reserve
Heavy cast iron core delivers long operational design life exceeding 30 years in aggressive soil and marine environments.
Center-Connection Technology
Eliminates end-effect current concentration in hollow tubular anodes, preventing premature cable detachment.
Superior Mechanical Abrasion Resistance
Rugged cast iron construction withstands rough field handling, soil settlement, and water velocity abrasion.
Full Conformance to International Standards
Supply anodes conforming to international and client standards.
Why choose HSCI Anodes from BSS Technologies?
At BSS Technologies, we manage the entire assembly and testing process right here at our inhouse facility. Our AMPP/NACE-certified engineers rigorously inspect every batch and ensure completely watertight cable connections. This strict in-house quality control guarantees you receive a reliable, certified HSCI anode built to protect your critical infrastructure for over 30 years.
Spectrographic chemical analysis certified for every casting production batch.
Vacuum epoxy resin cable potting subjected to 100% seal and pullout testing.
Center-connected tubular assemblies engineered for deep well borehole installation.
In-house AMPP/NACE specialists calculate exact ground bed resistance and metal depletion rates.
Applications of High Silicon Iron Anode
Areas
Deep well pipeline groundbeds
Shallow vertical & horizontal groundbeds
High-chloride & saline soil locations
Above-ground storage tank (AST) bottom plates
Offshore platform legs & subsea structures
Seawater & brackish water intake/outfall structures
Power plant cooling circuits & condensers
In-plant refinery & chemical piping networks
Underground storage tanks & pressure vessels
Marine quay walls, jetties & sheet piling
Municipal water & wastewater transmission mains
