Junction Box for Cathodic Protection
BSS Technologies manufactures custom junction boxes designed for safe current distribution, electrical bonding, and continuous monitoring across complex Cathodic Protection networks.

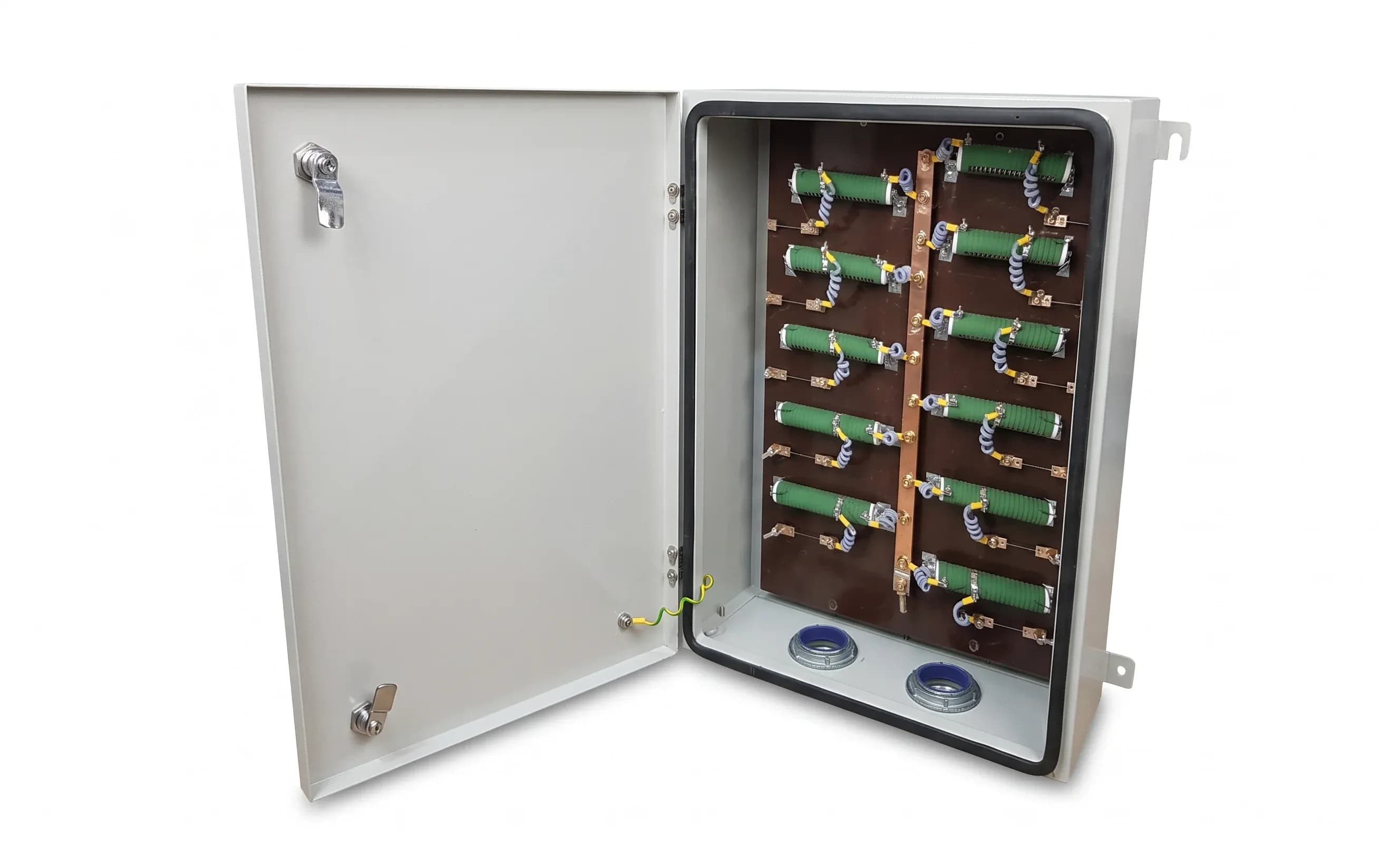

Cathodic Protection Junction Box
Junction boxes form a critical connection and control point within any cathodic protection setup. They are utilized to safely route, control, and distribute electrical current from transformer rectifiers to multiple anode groundbeds or protected metallic structures.
At BSS Technologies, we custom manufacture the junction box units to fit your precise project requirements and technical specifications. Because we offer complete flexibility, we can supply everything from simple bonding enclosures to highly complex distribution nodes equipped with monitoring hardware.

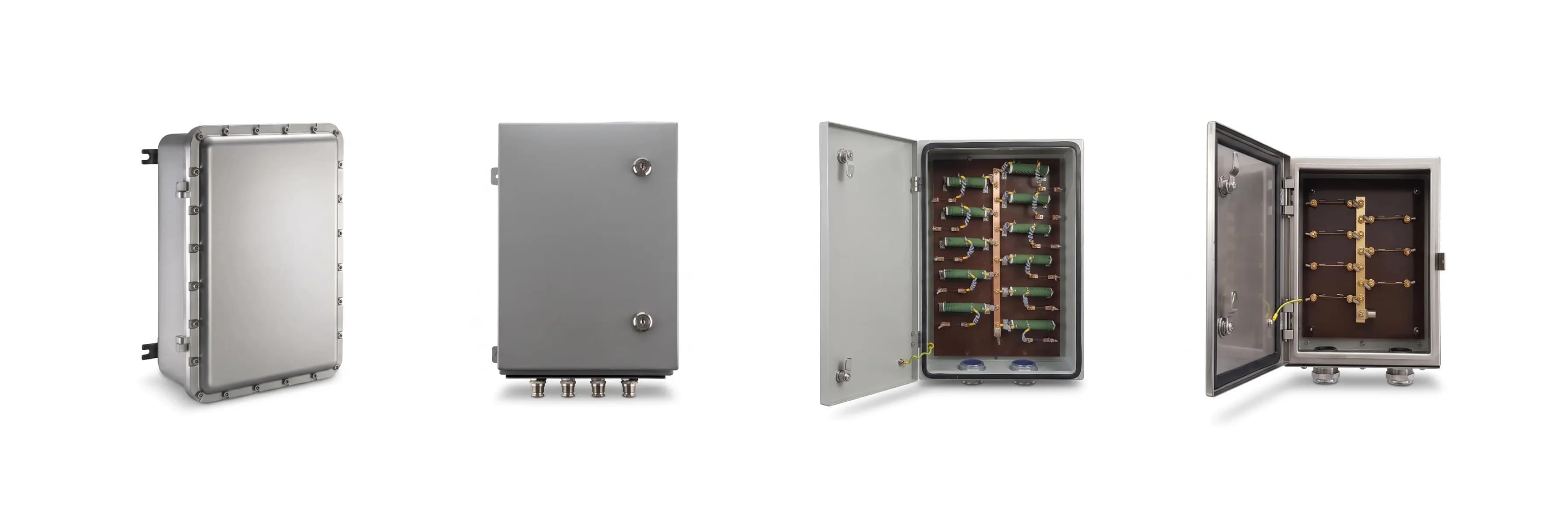

Types of CP Junction Boxes
Junction Box Type | Primary Function | Typical Site Applications |
|---|---|---|
Anode Junction Box | Distributes positive DC current to multiple anodes. | ICCP groundbeds, deep wells, and tank bottoms. |
Negative Junction Box | Consolidates return cables from protected structures. | Cross-country pipelines and marine platforms. |
Bonding Junction Box | Provides controlled electrical bonding or isolation. | Mitigating interference across parallel pipelines. |
Monitoring Junction Box | Measures current and controls circuit resistance. | Sacrificial anode arrays and complex ICCP setups. |
Use the guide above to specify the appropriate junction box type based on your system architecture.
Features & Technical Advantages
High Integral component for safe current distribution.
Facilitates structured bonding and CP monitoring.
Custom layouts fit distinct project specifications.

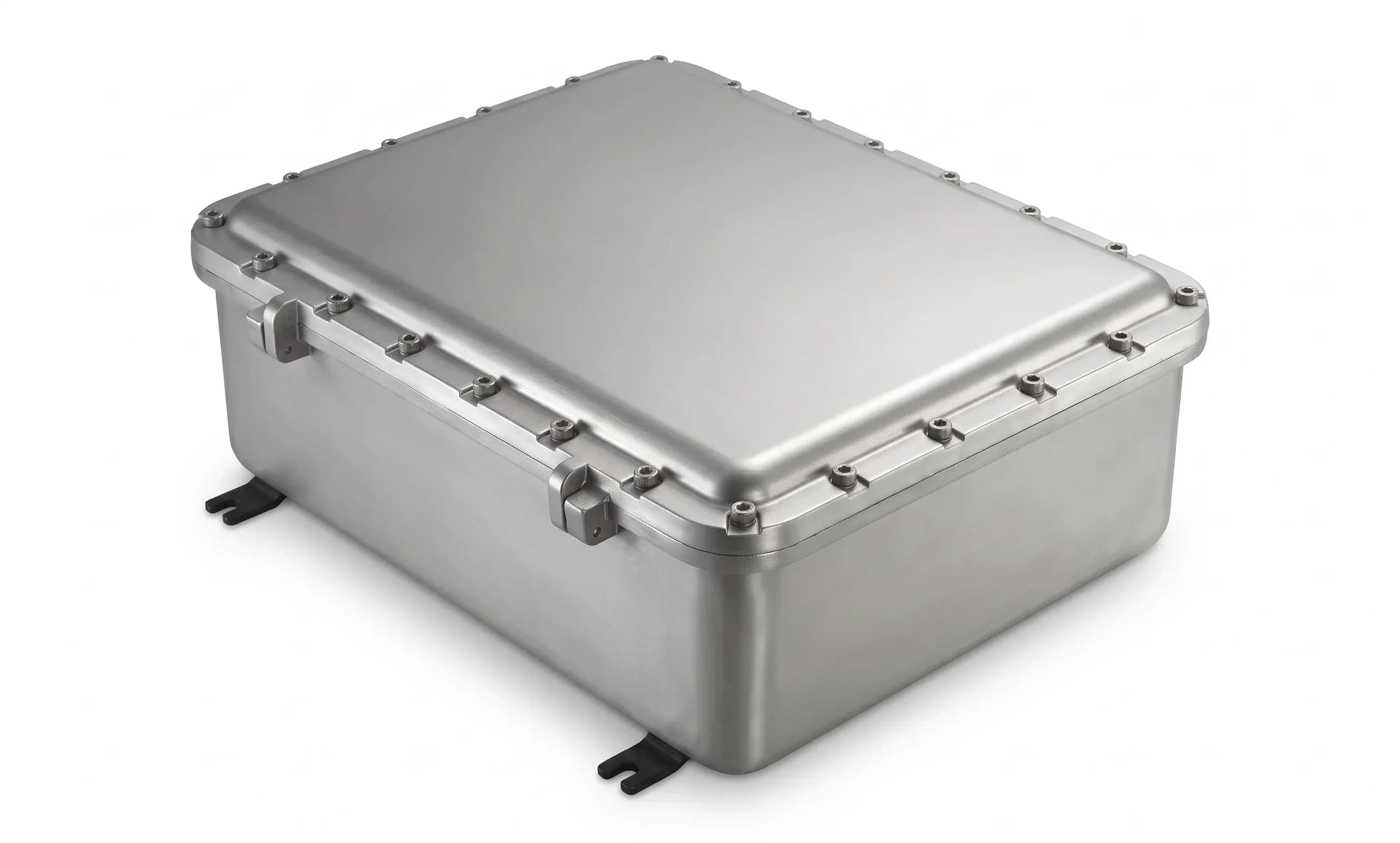

Available in certified enclosures for hazardous areas.
Manufactured with robust and weather resistant materials.
Technical Specifications
Since the cathodic protection junction boxes must operate in highly variable climates, we offer flexible enclosure materials and certifications to match your engineering drawings.
Feature / Component | Specifications / Options |
|---|---|
Typical Materials | Stainless Steel, Mild Steel, Aluminium, GRP / FRP |
Typical Coatings | Uncoated, Powder Coated, Sprayed, Galvanised |
IP Rating | IP54 to IP66 |

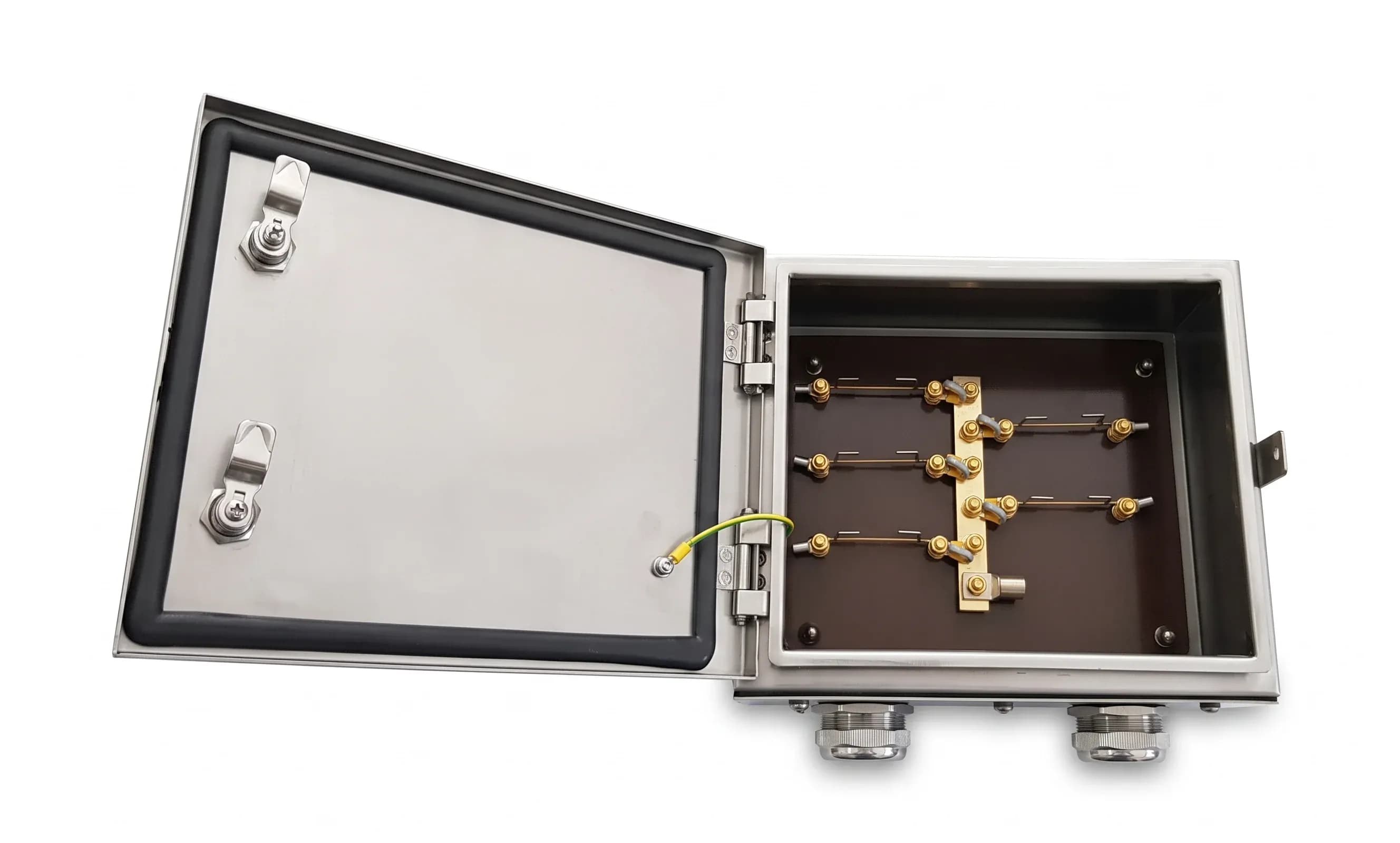

Area Rating | Safe Area, Zone 1, Zone 2 |
Internal Components | Resistors, Shunts, Reed Switch, Diode, Copper Links, Terminals, Cables |
Cable Entry | Conduit Hub, Cable Glands |
Accessories | Frame, Labels, Locks |
Since the cathodic protection junction boxes must operate in highly variable climates, we offer flexible enclosure materials and certifications to match your engineering drawings.
Feature / Component | Specifications / Options |
|---|---|
Typical Materials | Stainless Steel, Mild Steel, Aluminium, GRP / FRP |
Typical Coatings | Uncoated, Powder Coated, Sprayed, Galvanised |
IP Rating | IP54 to IP66 |
Area Rating | Safe Area, Zone 1, Zone 2 |
Internal Components | Resistors, Shunts, Reed Switch, Diode, Copper Links, Terminals, Cables |
Cable Entry | Conduit Hub, Cable Glands |
Accessories | Frame, Labels, Locks |
Your corrosion challenges are our expertise,
Trust the industry leader in electrochemistry and asset integrity.
Applications of CP Junction Box
Individual Anode Current Regulation
Anode Group Termination
Anode Fault Isolation
Structure Cable Consolidation
Rectifier Negative Connection
Structure Current Balancing
Foreign Structure Interference Control
Utility Cross-Bonding
Diode and Resistor Housing
Centralized Test Data Collection
Remote Monitoring System Integration
Routine Maintenance Surveys
Why Choose BSS Technologies as Your Preferred CP Junction Box Supplier?
We maintain direct oversight of our assembly process to provide dependable asset shielding across complex infrastructure. We complement our product options with dedicated technical assistance to see your monitoring networks and distribution nodes deployed with maximum engineering efficiency.
Direct manufacturer control over enclosure and assembly.
Custom configurations match your engineering drawings.
High grade internal components maintain exact resistance.
Certified enclosures suit safe and hazardous locations.
Technical team assists with specific layout calculations.
