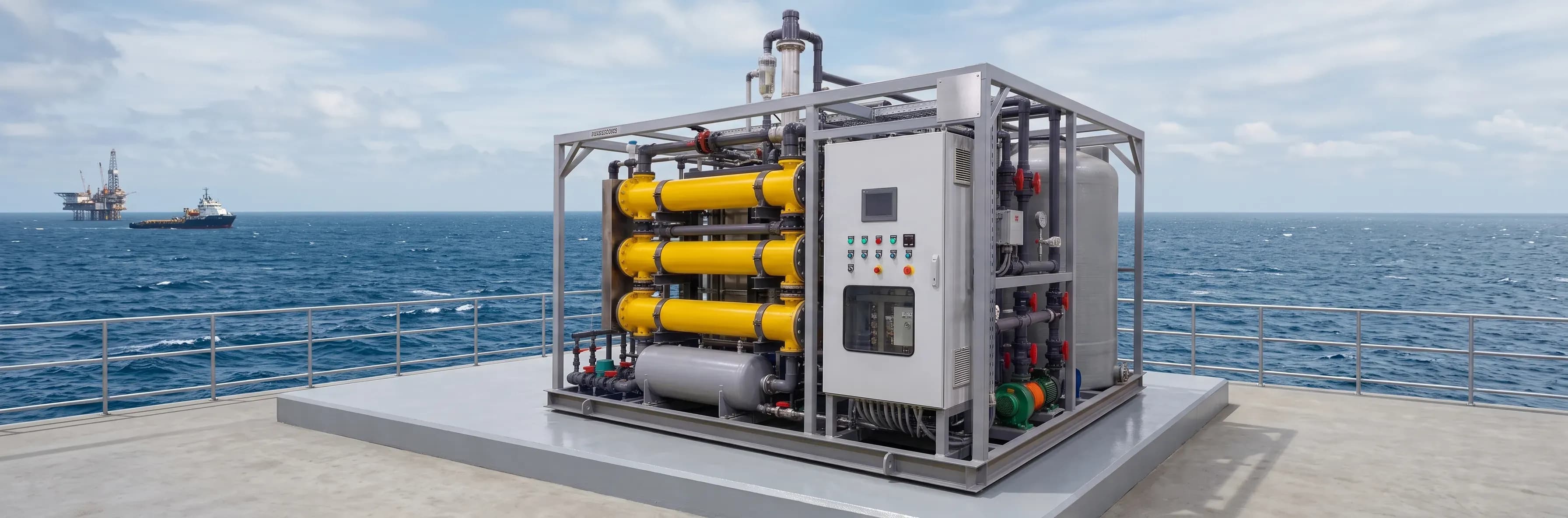

HypoKlor® Electrochlorination System
BSS Technologies proudly manufactures the HypoKlor® system for the safe, on-site generation of sodium hypochlorite from seawater or brine. We deliver highly effective water treatment and disinfection solutions for critical infrastructure
What is HypoKlor® Electrochlorination System?
HypoKlor® is an advanced electrochlorination technology designed to produce sodium hypochlorite directly on site. This highly effective biocide offers extremely low toxicity and safe handling compared to traditional hazardous chemicals.
At BSS Technologies, we custom-engineer these packages to provide economical disinfection for coastal plants. Producing the exact biocide volume on demand helps your facility completely eliminate the severe risks of transporting bulk chemicals
The Electro-Chemical Process & Engineering
The HypoKlor® process is engineered for maximum conversion efficiency and field safety. The system first filters incoming seawater to remove suspended solids larger than 0.5 mm. The water then passes through a dedicated flow control loop—equipped with a flow transmitter and low-flow shut-down protection—before entering the electrolyzer cells.

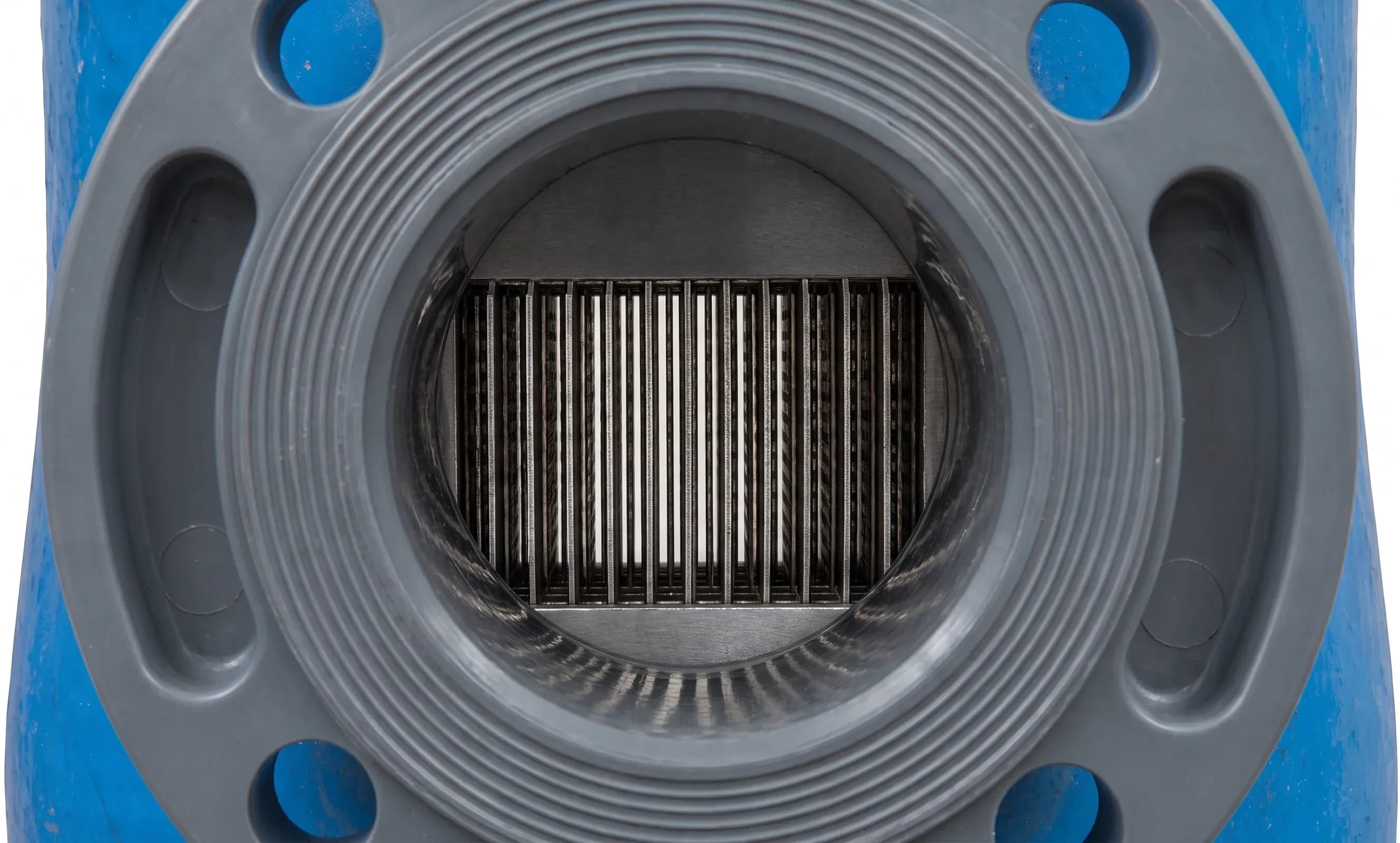

Crucially, our electrolyzers operate without a partition between the electrodes. This design allows hydroxide (OH-) ions produced at the cathode to move freely toward the anode, creating a basic electrolyte environment. This basic state forces the chlorine gas to react immediately with the hydroxide ions to produce active hypochlorite at the anode, rather than escaping the solution.
The Fundamental Chemical Reaction
Anode Reaction: 2Cl- → Cl2 + 2e-
Cathode Reaction: 2H2O + 2e- → H2 + 2OH-
Hydroxide Formation: 2Na+ + 2OH- → 2NaOH
Overall System Reaction: NaCl + H2O → NaOCl + H2
The active hypochlorite is then injected into your water network in continuous or shock-dosing modes, while the hydrogen gas byproduct is safely diluted and released into the atmosphere by dedicated air blowers.

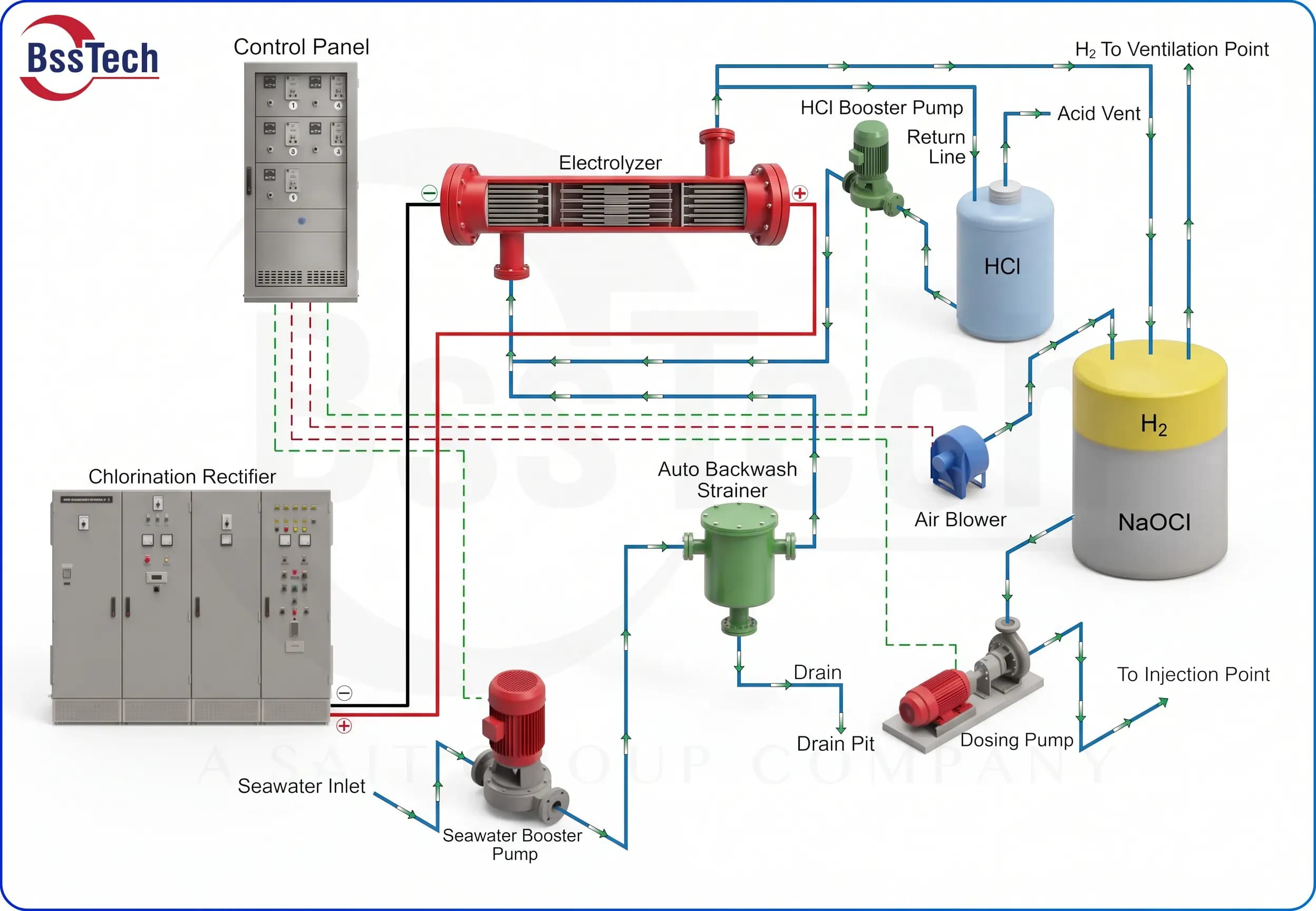

Hypoklor® Electrochlorination Process

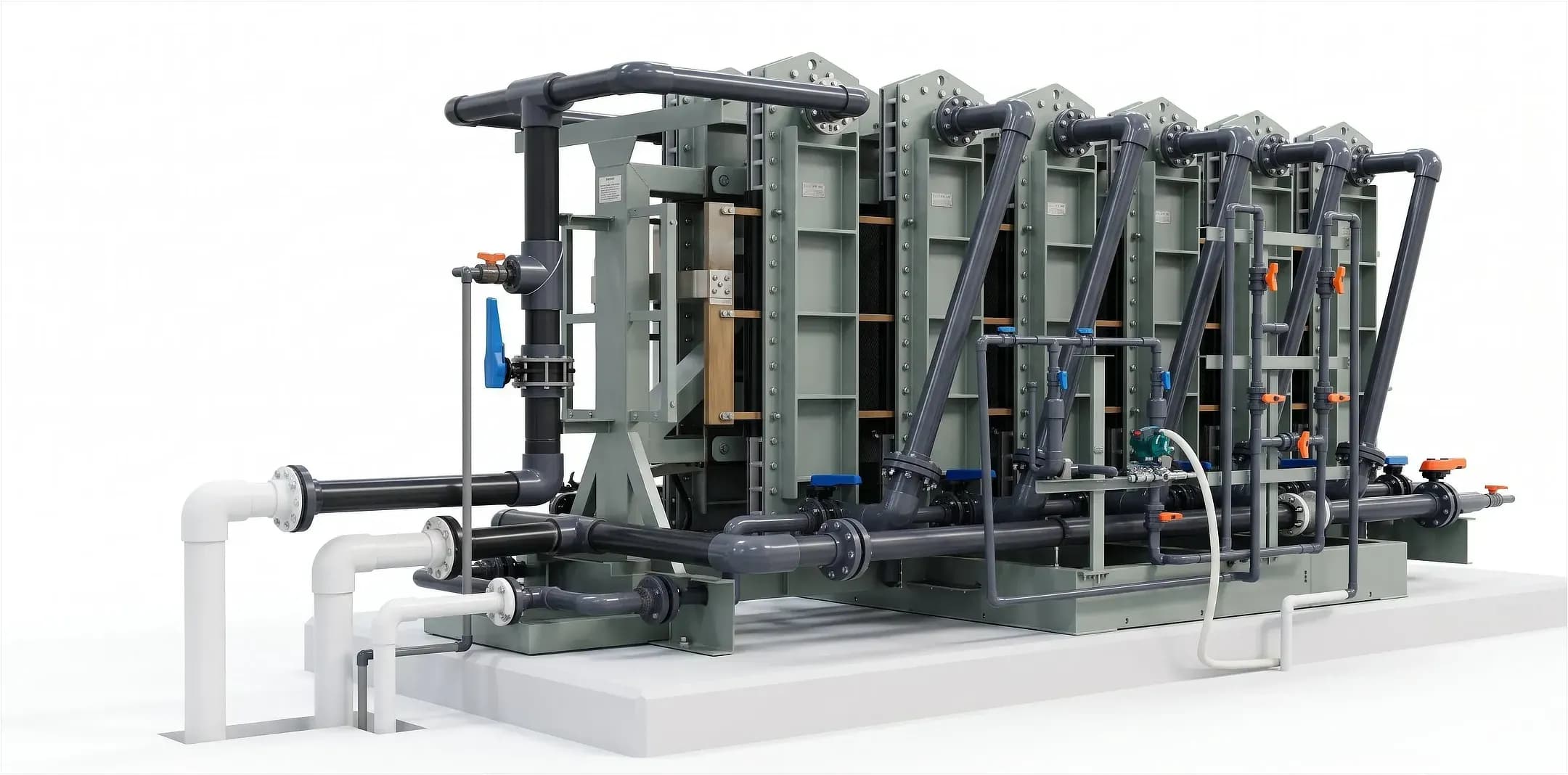

Hypoklor® System Components

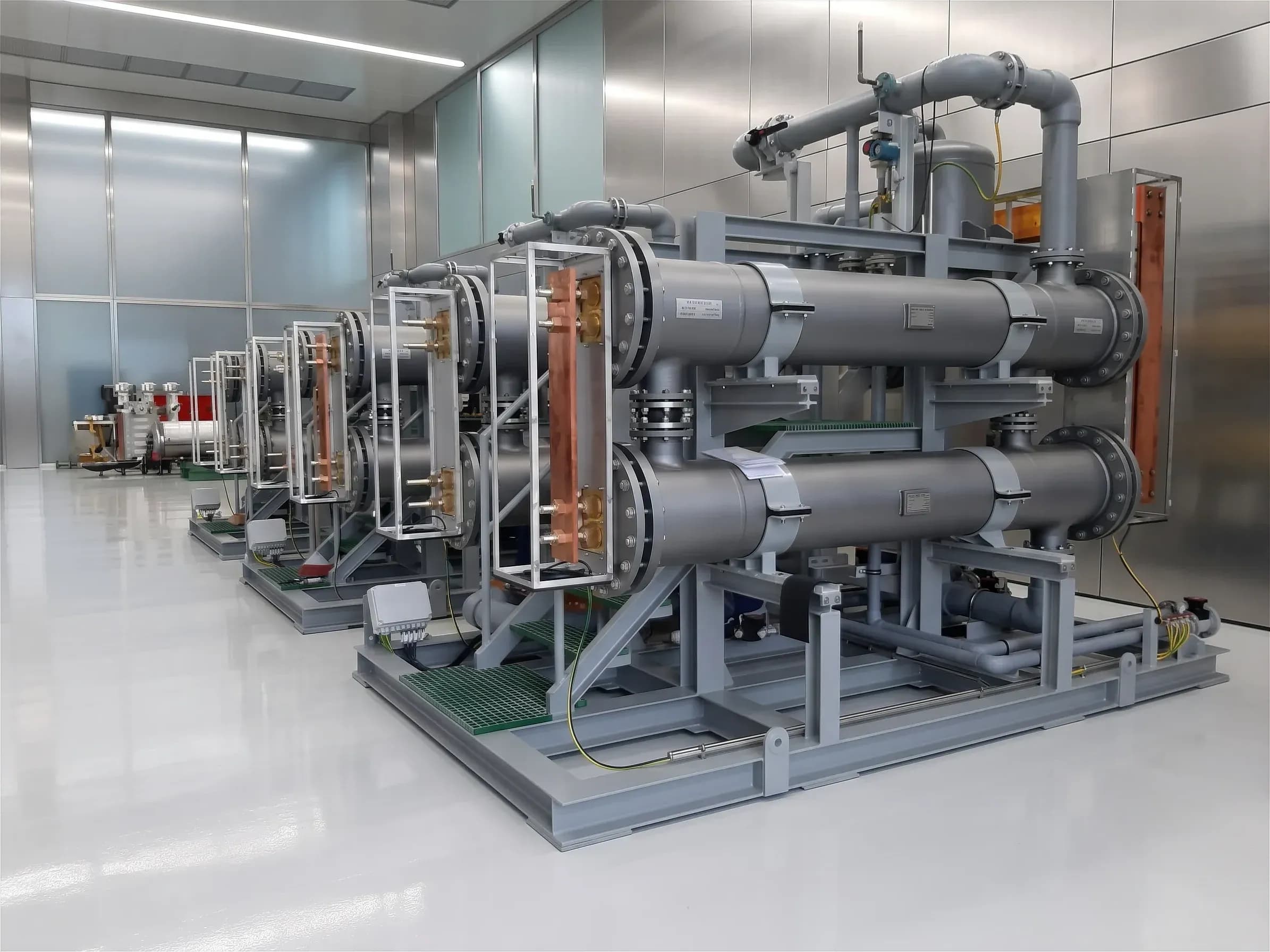

We manufacture and integrate every HypoKlor® package to cater strictly to your site layout and flow demands, incorporating the following primary hardware.
Component | Operational Function & Technical Details |
|---|---|

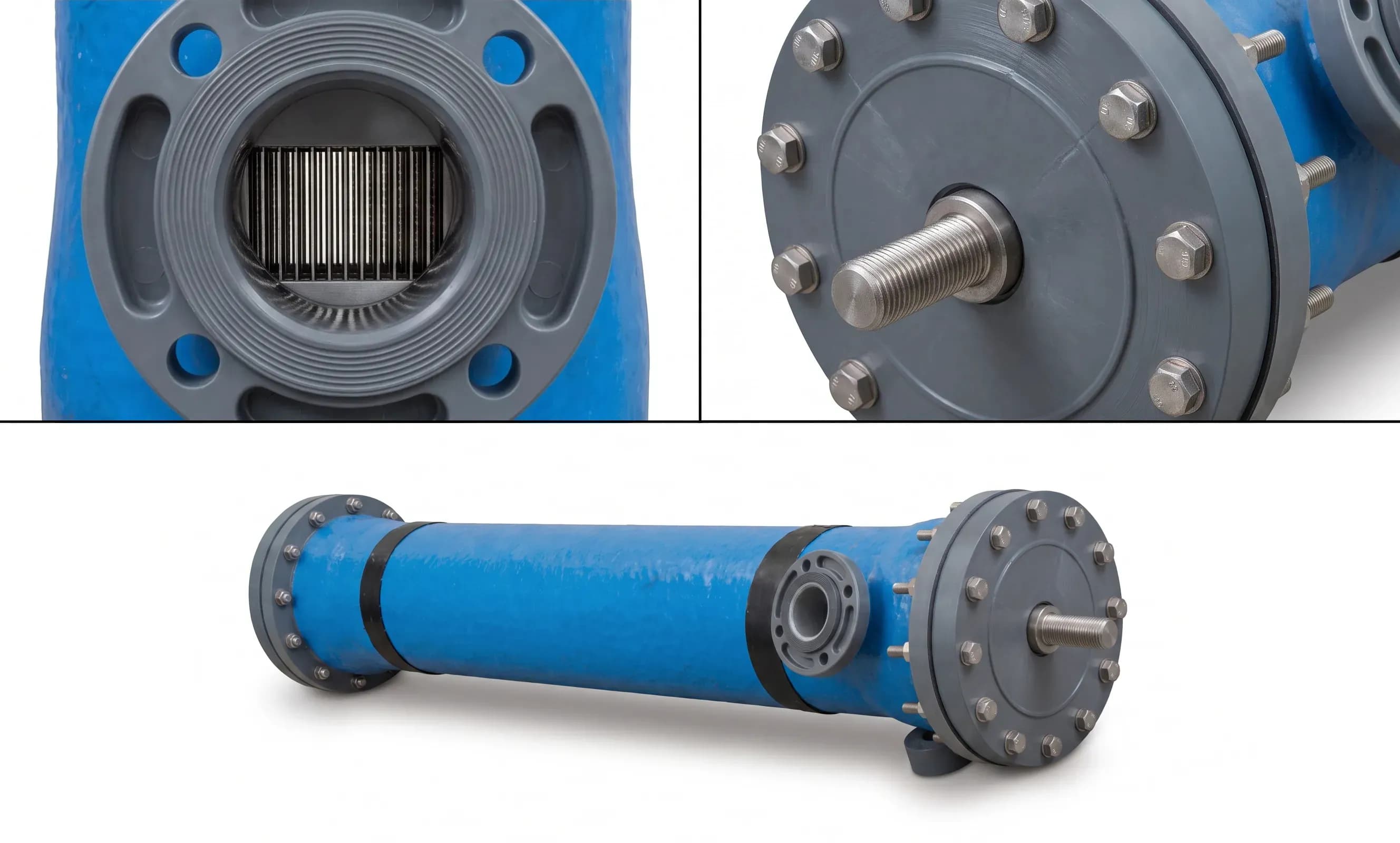

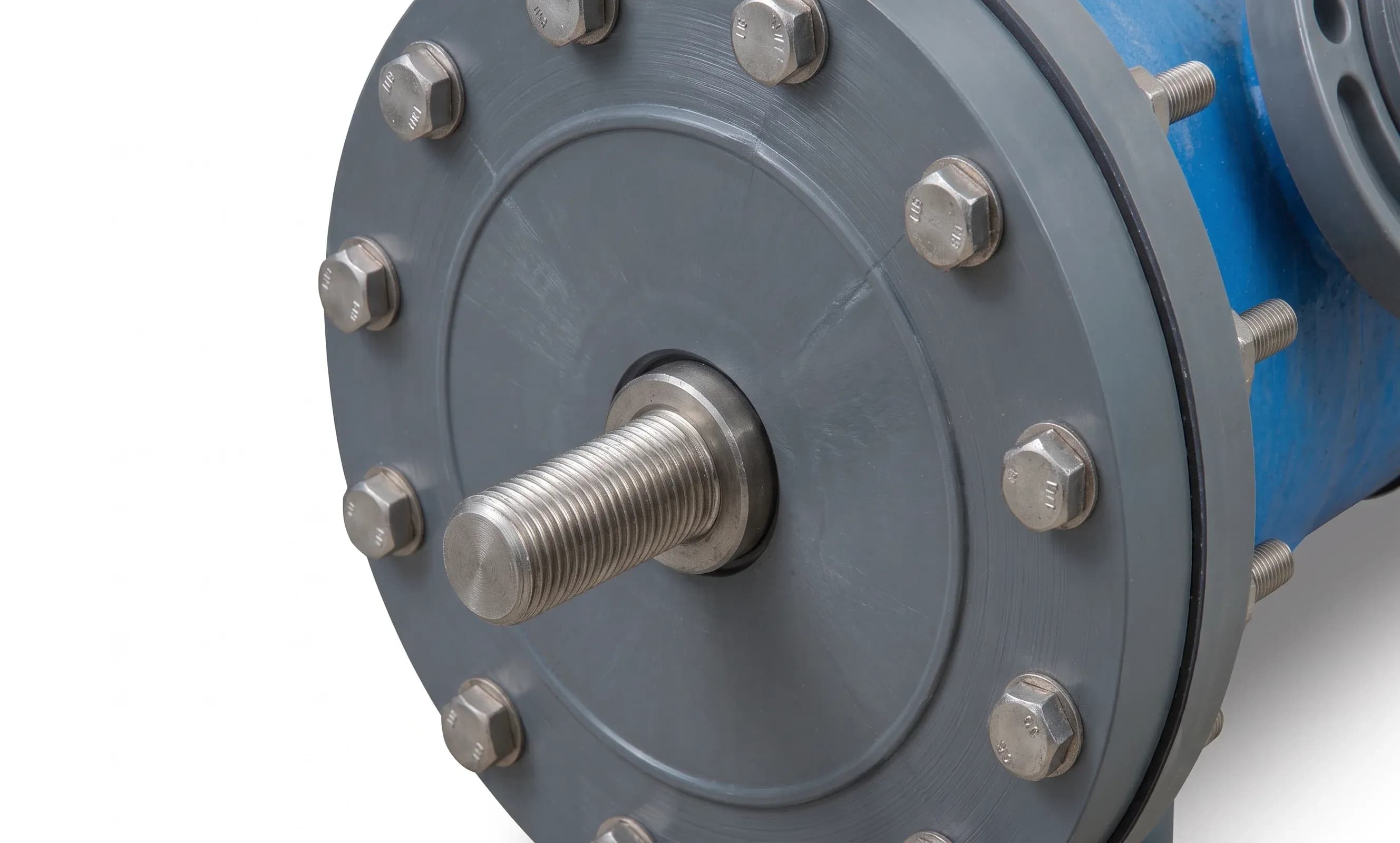

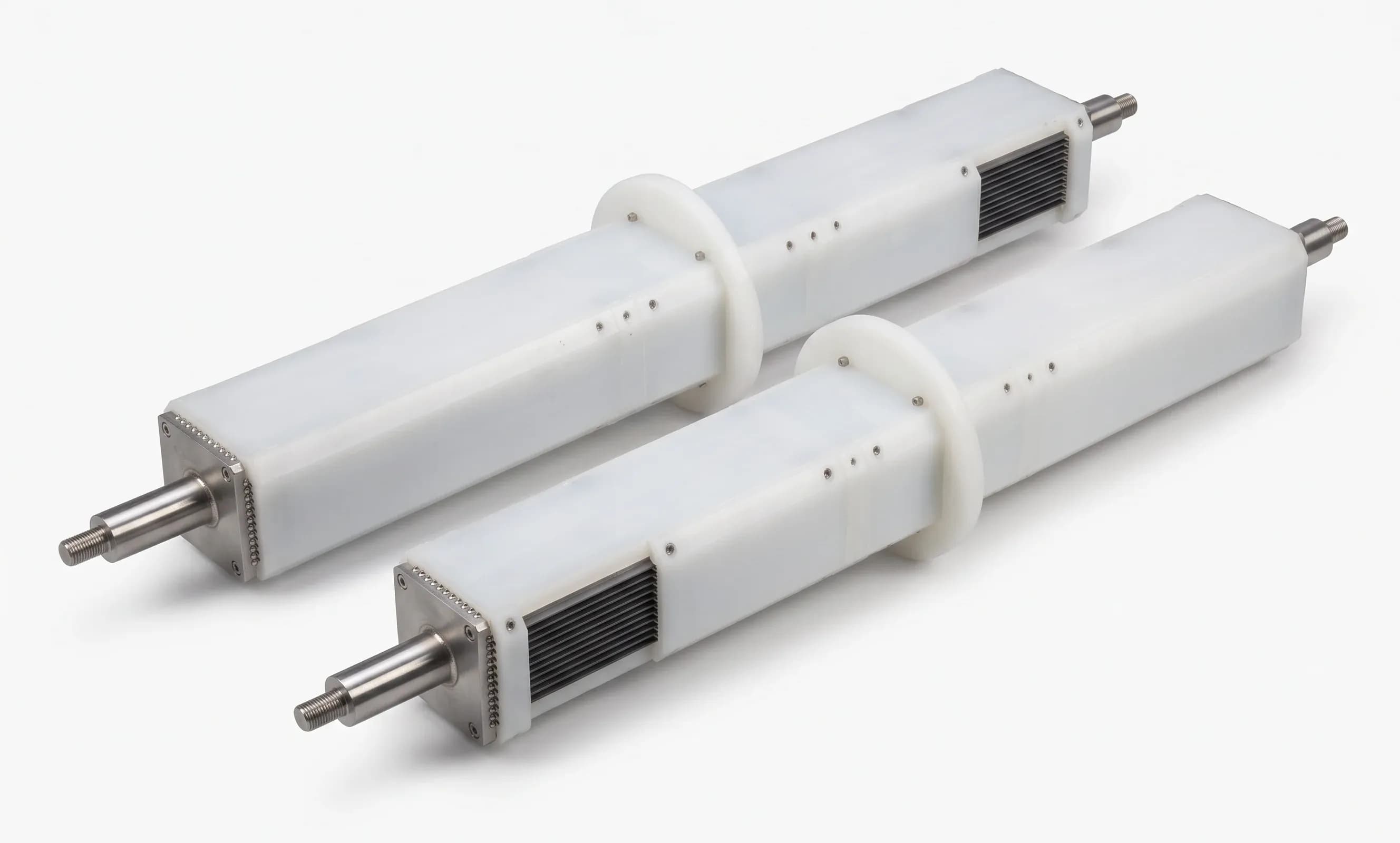

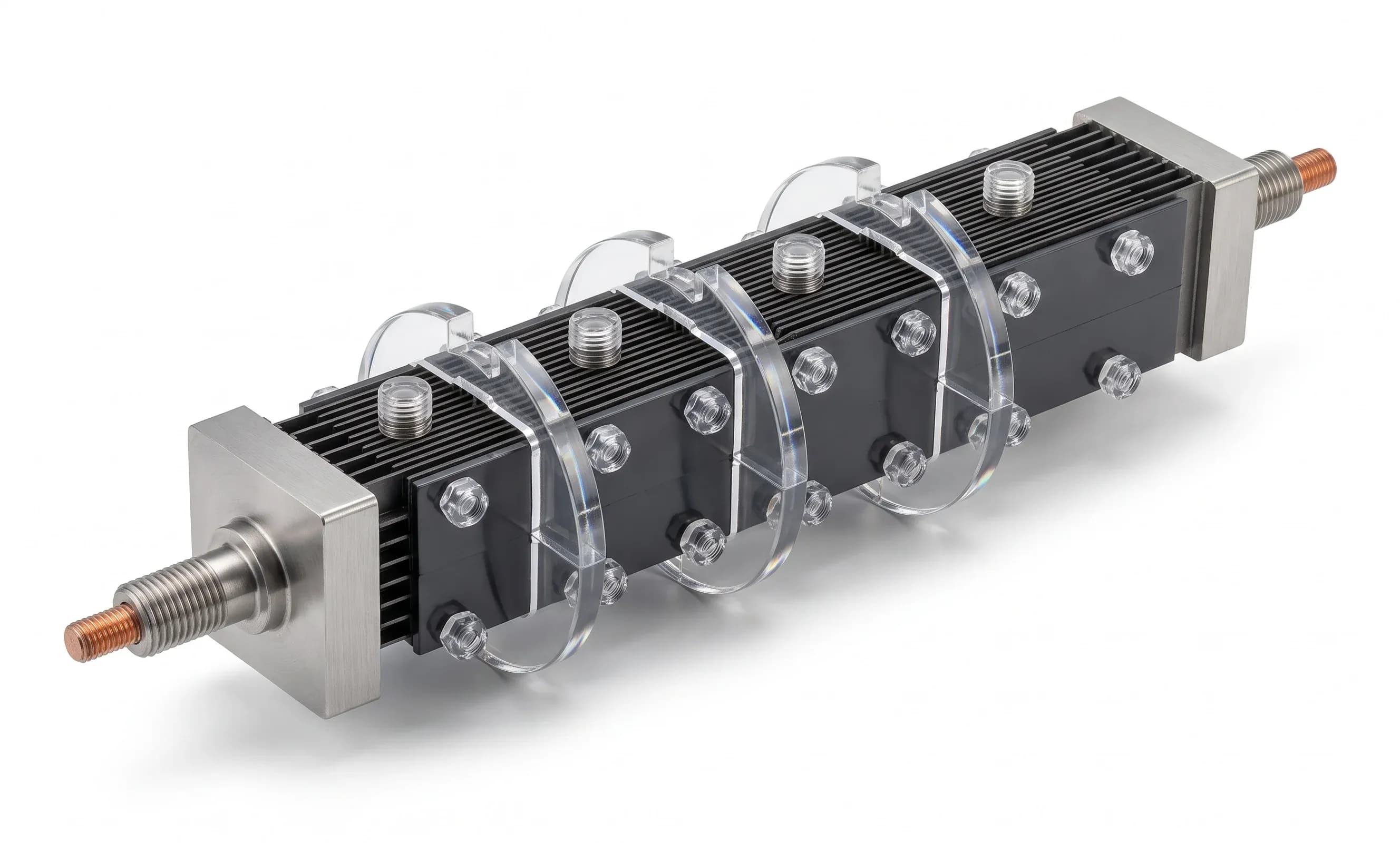

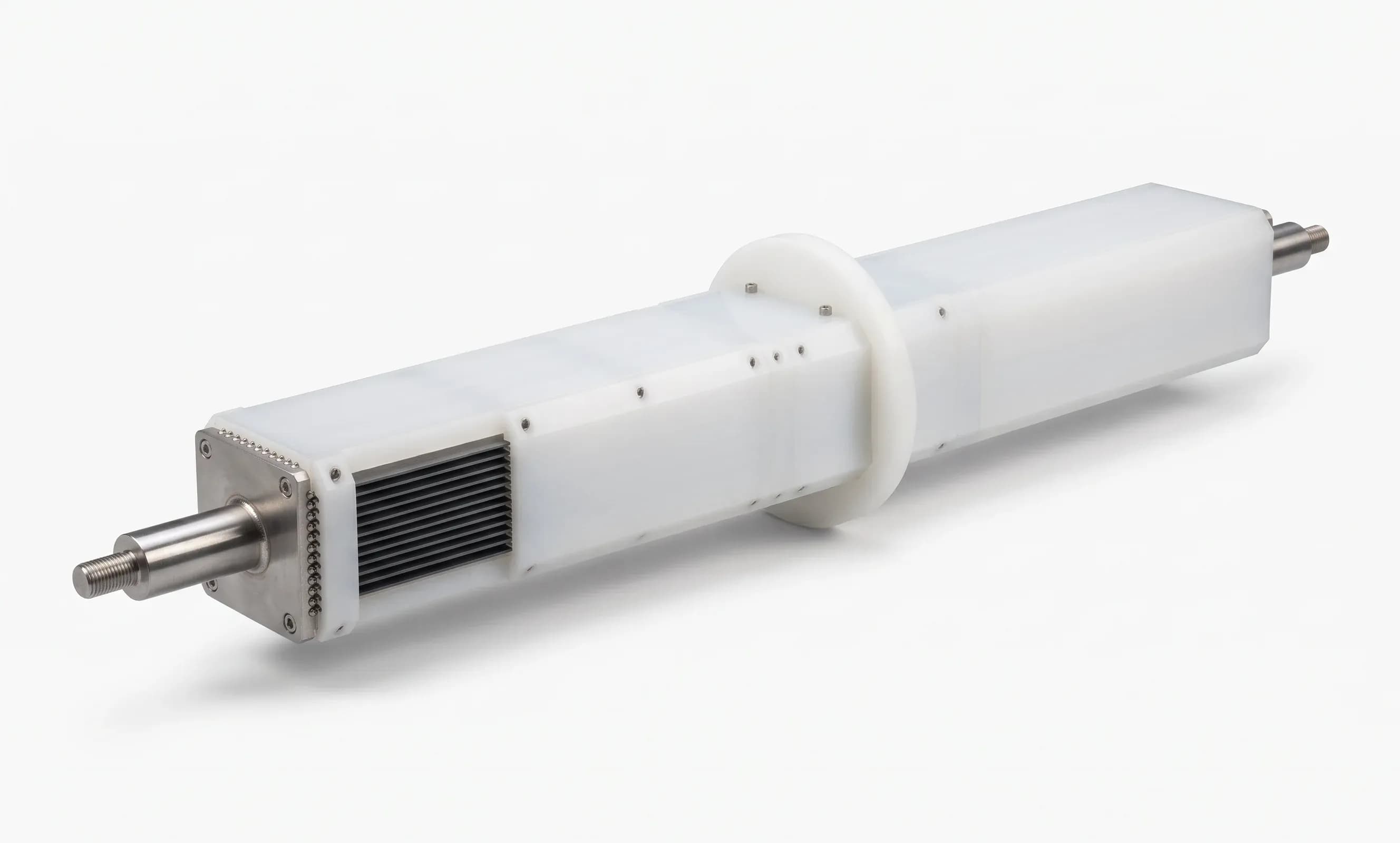

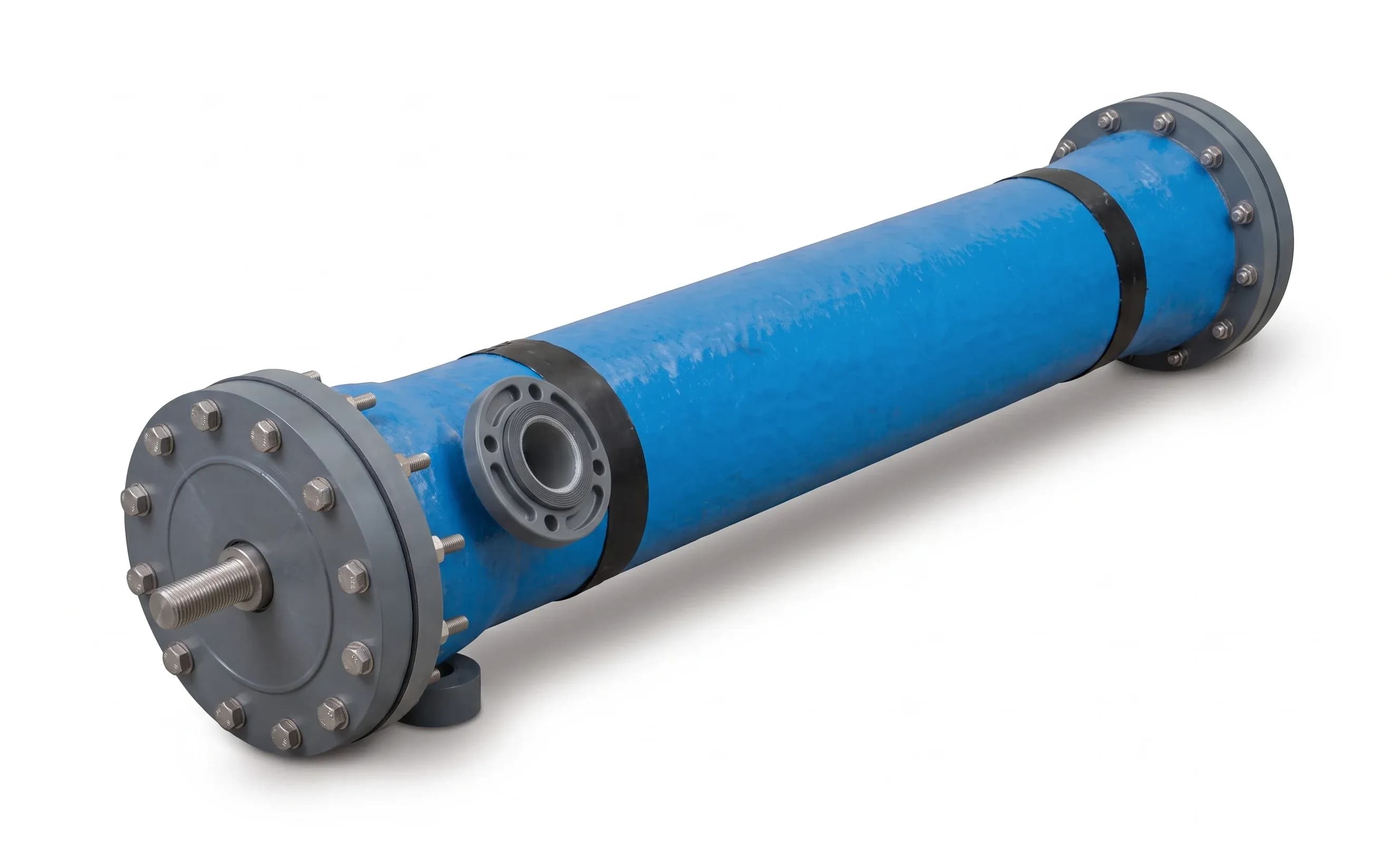

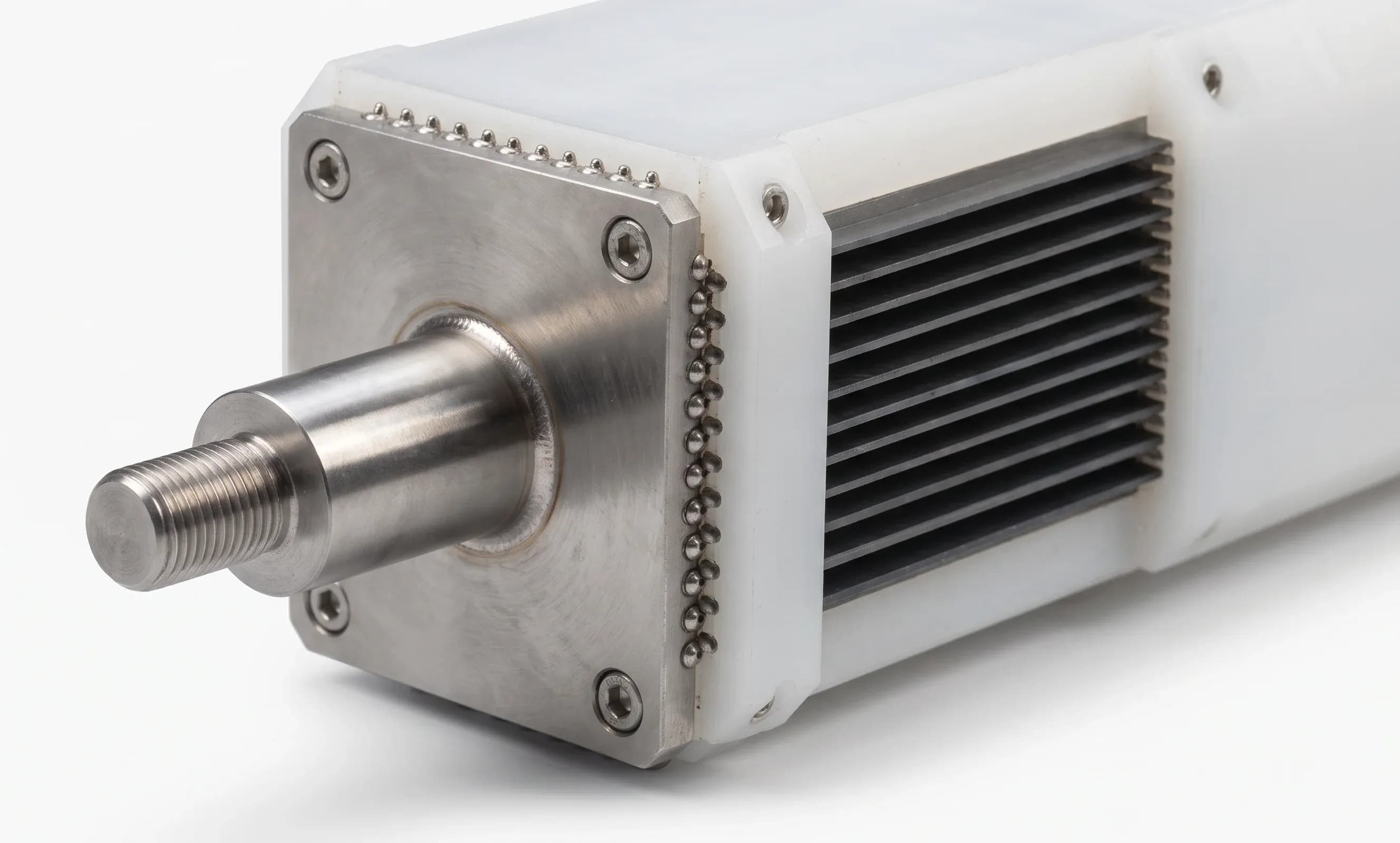

Electrolyzers & Rectifiers | The heart of the package utilizing direct current from 1KA to 10KA. |
Sea Water Filters | Removes suspended solids larger than 0.5 mm prior to electrolysis. |
Flow Control Loop | Integrates a flow control valve and transmitter with low flow shut down. |
Degassing & Acid Tanks | Safely dilutes hydrogen gas and manages necessary chemical balancing. |
Dosing & Booster Pumps | Manages water intake and the precise injection of the generated biocide. |
Component | Operational Function & Technical Details |
|---|---|
Electrolyzers & Rectifiers | The heart of the package utilizing direct current from 1KA to 10KA. |
Sea Water Filters | Removes suspended solids larger than 0.5 mm prior to electrolysis. |
Flow Control Loop | Integrates a flow control valve and transmitter with low flow shut down. |
Degassing & Acid Tanks | Safely dilutes hydrogen gas and manages necessary chemical balancing. |
Dosing & Booster Pumps | Manages water intake and the precise injection of the generated biocide. |
Capacities & Technical Specifications
Custom packages produce from 2 kg/h up to 900 kg/h of biocide
Direct current applications range from 1KA up to 10KA
Power ratings scale from 100kW up to 1MW for heavy industry
Features automatic low flow shut down safety protection
Eliminates hazardous chemical transport and storage risks
Your water disinfection challenges are our expertise.
Contact our engineering team today to request a custom Electrochlorination System quotation or design review
Applications of Hypoklor® Electrochlorination System
Power plant fouling control
Offshore Platform Safety

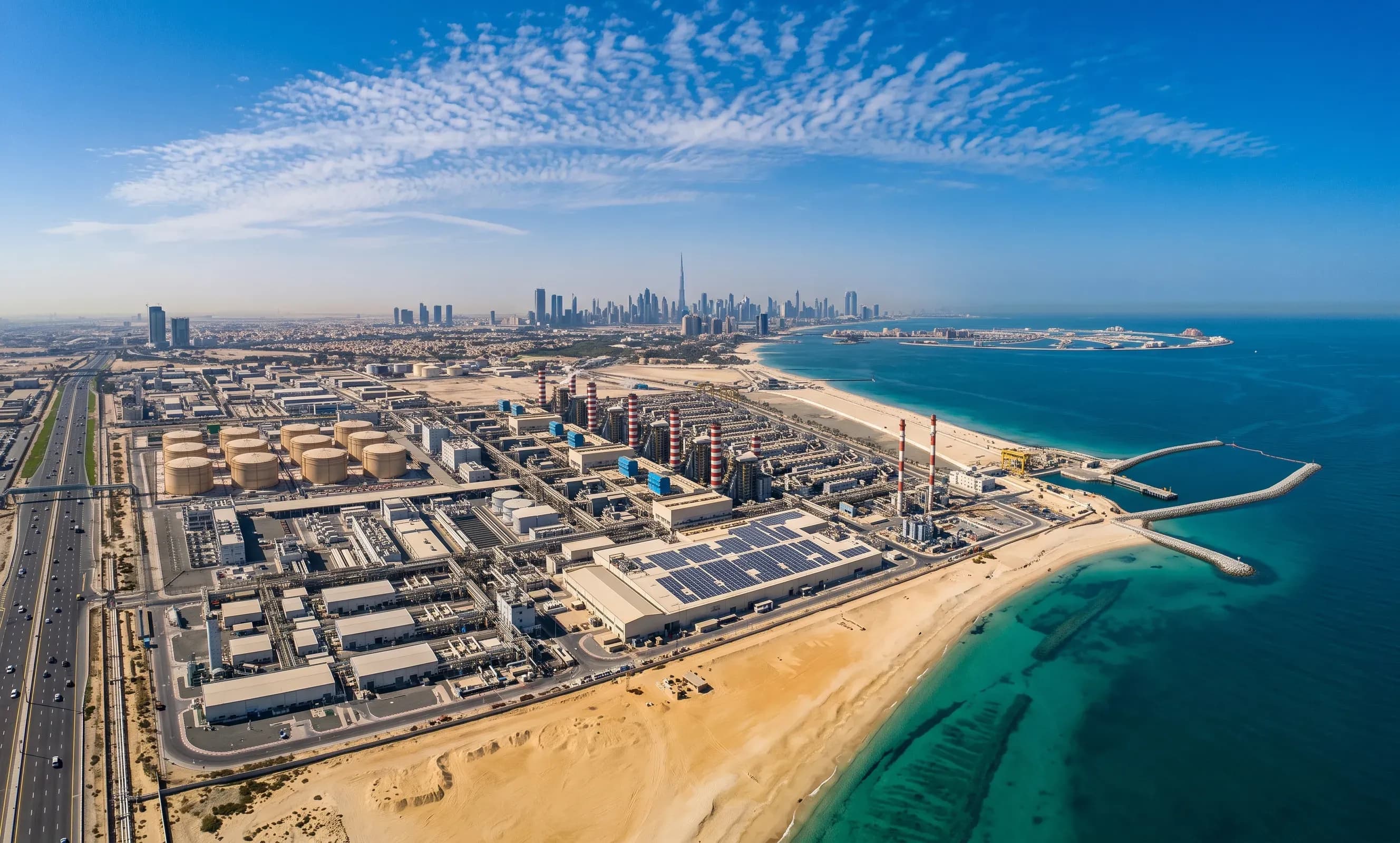

Desalination & LNG intakes
Water & sewage disinfection
Marine ballast treatment
District cooling system
Wastewater & aqua parks
Why Choose BSS Tech as Your Preferred Electrochlorination System Supplier?
We take immense pride in supporting our clients from the initial process design all the way to final site commissioning. Our technical team also provides dedicated consultancy and plant refurbishment services for rectifiers and electrolyzers of any existing brand, helping you modernize your water treatment facilities in a highly cost-effective manner.
In house engineering of custom electrochlorination packages

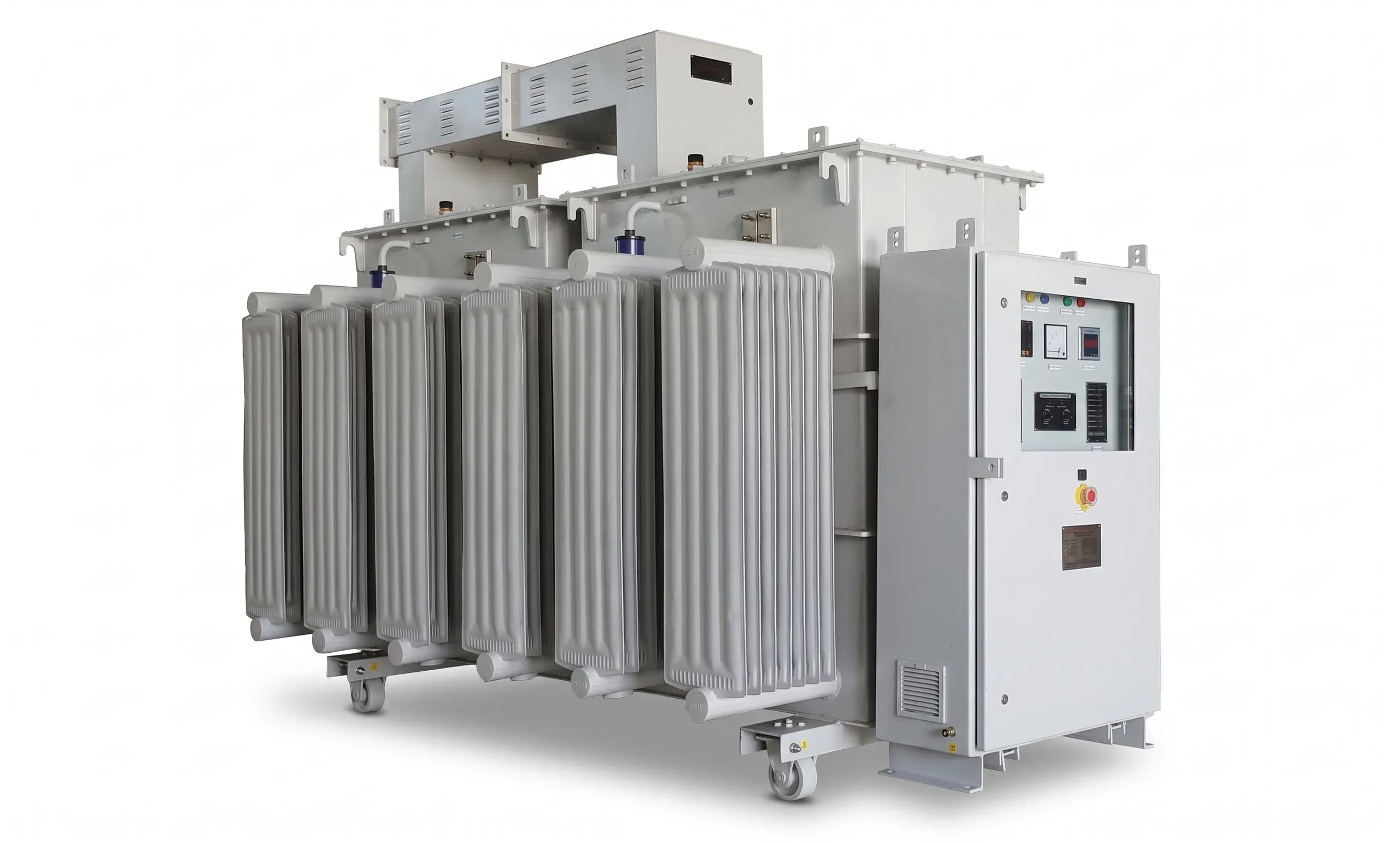

Direct manufacturer of specialized hypochlorite rectifiers
Technical consultancy for new builds and system upgrades
Complete refurbishment services for existing chlorinators
Client training workshops available for operational teams
