MMO Coated Titanium Anodes
BSS Technologies manufactures & supplies Mixed Metal Oxide (MMO) Titanium Anodes and Conductor Bars engineered for impressed current cathodic protection across soils, seawater, brackish water, deep wells, and reinforced concrete structures.
Dimensionally Stable MMO Titanium Anodes
High-capacity infrastructure, underground storage tanks, deep well beds, and marine structures demand dimensionally stable impressed current anodes. BSS Technologies manufactures and assembles advanced Mixed Metal Oxide (MMO) titanium anodes at our manufacturing facility. Utilizing electrocatalytic precious metal oxide coatings over Grade 1 titanium, our anodes deliver stable current discharge for design lives exceeding 30 years.
What Are MMO Titanium Anodes?
MMO coated titanium anodes are dimensionally stable ICCP anodes made from Grade 1 or Grade 2 titanium with a thin mixed metal oxide coating. The coating provides the required electrochemical activity while the titanium substrate provides a stable, corrosion-resistant base.
They are used for applications such as deep well ground beds, pipelines, storage tank bottoms, marine structures, water intakes and reinforced concrete. Depending on the environment and coating formulation, MMO titanium anodes can provide high current output with very low electrochemical consumption.
How MMO Titanium Anodes Work
An MMO titanium anode operates as a key component of an Impressed Current Cathodic Protection (ICCP) system. It relies on an external DC power source like a Transformer Rectifier. In this setup, the anode connects to the positive terminal, while the steel structure needing protection, such as a buried pipeline or storage tank, connects to the negative terminal. As current passes from the anode through the electrolyte to the structure, it shifts the steel's electrical potential into a safe range to halt corrosion.
The mixed metal oxide (MMO) coating supports the specific anodic reaction needed for the project. Coating formulations can be tailored for oxygen evolving or chlorine evolving environments. This adaptability ensures they perform reliably across different conditions, whether installed in soil, fresh water, concrete, or the harsh seawater and brine environments common in this region.
Types of MMO Titanium Anodes We Provide

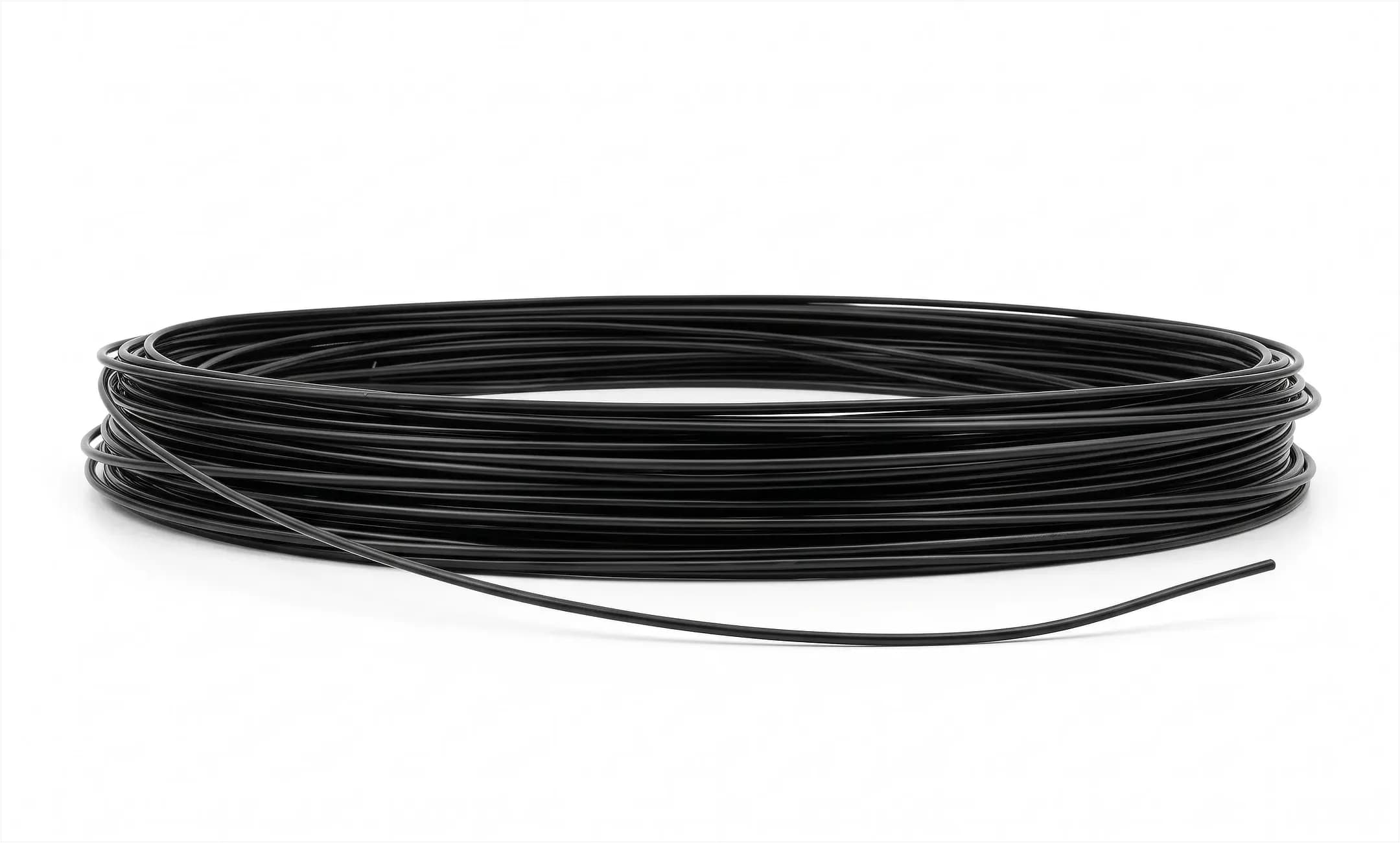

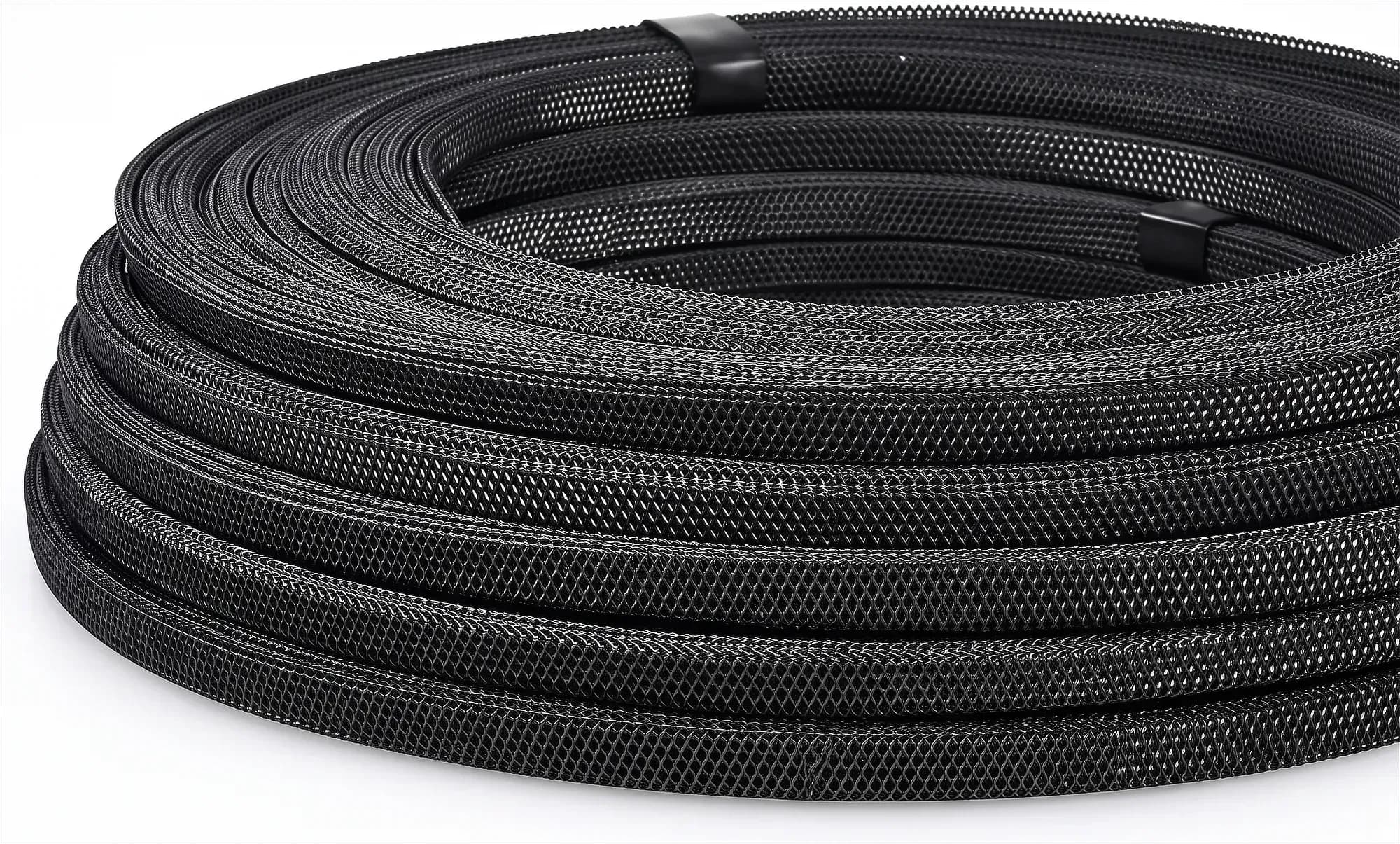

BSS Technologies provides specialized MMO Titanium anode configurations to match your exact project requirements. Explore our range of tubular, ribbon, wire, and mesh profiles designed for durability and precise current delivery.
Features
Discover the key technical advantages of our MMO Titanium anodes, engineered to deliver ultra-low wear rates and consistent, high-capacity current output for long-term asset protection.

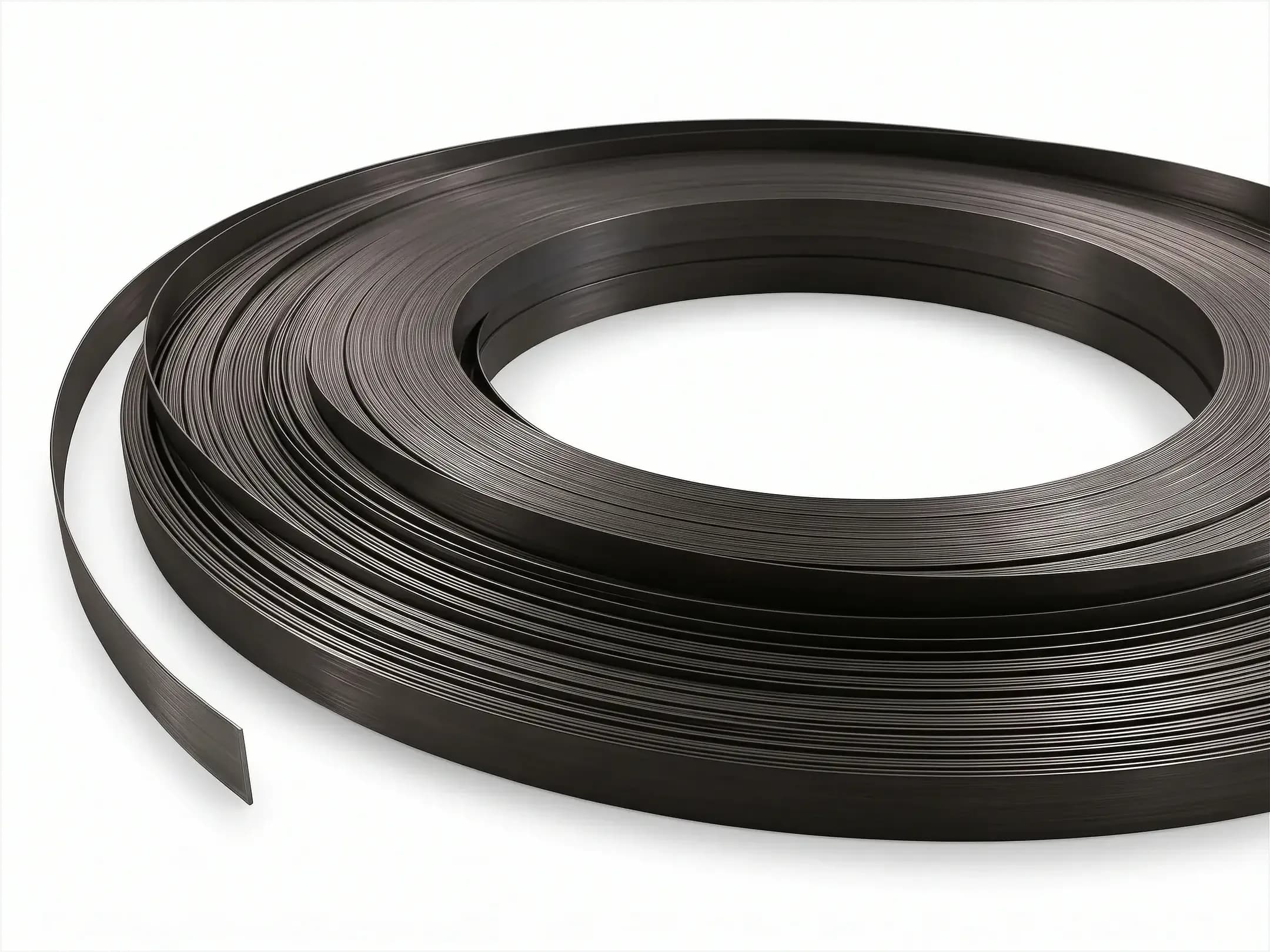

Solid Grade 1 titanium ribbon activated with mixed metal oxide coating, engineered for external CP under aboveground storage tank floors.
Manufactured from ASTM B338 Grade 1 or 2 seamless titanium tubing.
Coated with electrocatalytic Ir-Ta or Ru-Ir precious metal oxide film.
Current discharge up to 750 A/m² in seawater and 100 A/m² in coke breeze.
Low electrochemical consumption rate of 0.5 to 4.0 mg/A-year.
Center-connected with dual HMWPE or PVDF/HMWPE cable tails for 30+ year life.
Your corrosion challenges are our expertise,
Trust the industry leader in electrochemistry and asset integrity
Technical Specifications & Operating Parameters
A comprehensive breakdown of anode material performance, highlighting substrate specifications, wear rates, and expected operational lifespans to support accurate system design.
Environment / Medium | MMO Tubular Anode | MMO Wire Anode | MMO Ribbon Anode | MMO Mesh Ribbon (Concrete) |
|---|---|---|---|---|
Sea Water | 750 A/m² | 600 A/m² | — | — |
Brackish / Fresh Water | 150 A/m² | 100 A/m² | — | — |
Calcined Petroleum Coke | 100 A/m² | — | 17 – 105 mA/m | — |
Marine Mud / Sediments | 50 A/m² | — | — | — |
Concrete Interface (FHWA) | — | — | — | 110 mA/m² (220 max) |
Environment / Medium | MMO Tubular Anode | MMO Wire Anode | MMO Ribbon Anode | MMO Mesh Ribbon (Concrete) |
|---|---|---|---|---|
Sea Water | 750 A/m² | 600 A/m² | — | — |
Brackish / Fresh Water | 150 A/m² | 100 A/m² | — | — |
Calcined Petroleum Coke | 100 A/m² | — | 17 – 105 mA/m | — |
Marine Mud / Sediments | 50 A/m² | — | — | — |
Concrete Interface (FHWA) | — | — | — | 110 mA/m² (220 max) |

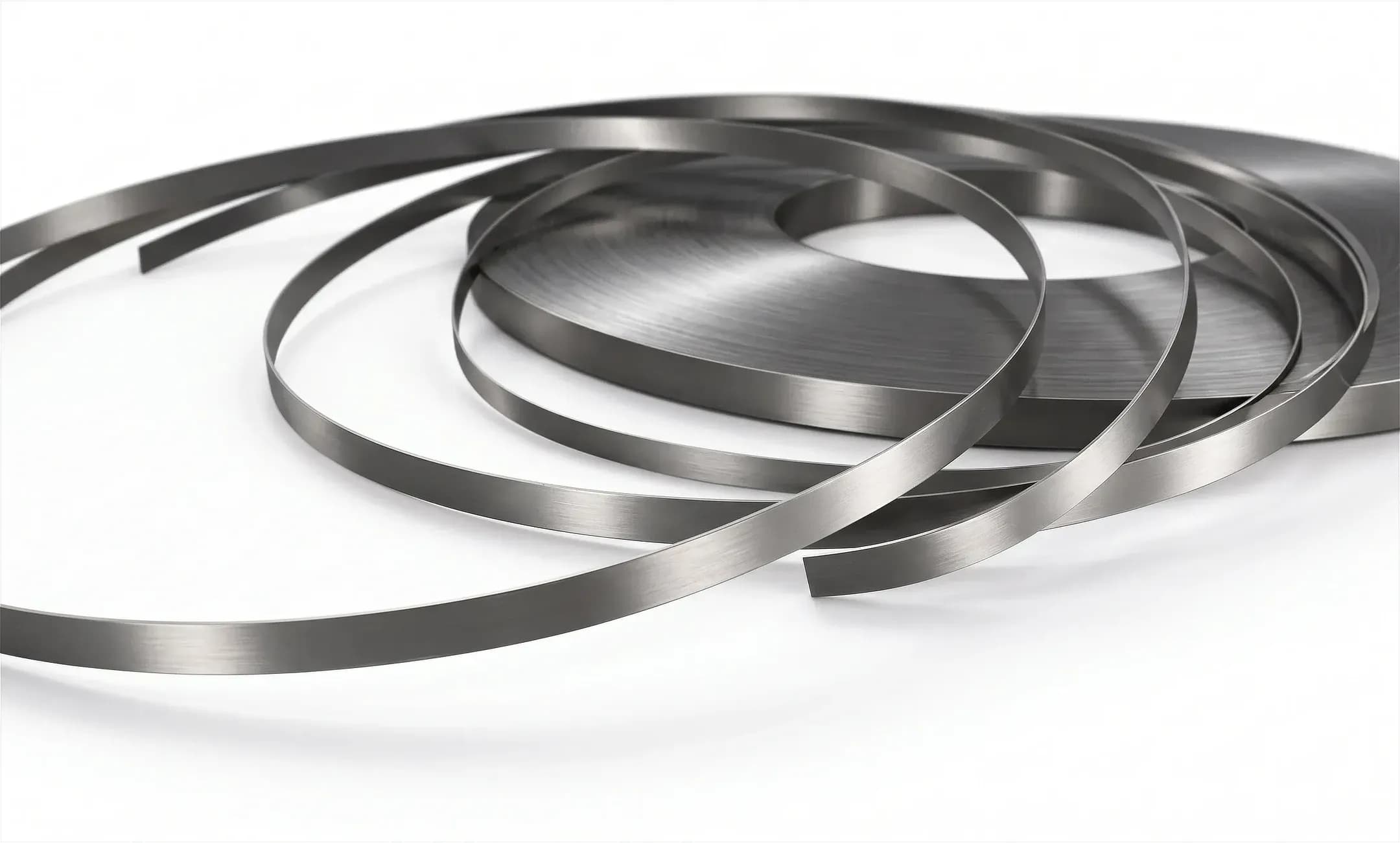

Titanium Conductor Bar for MMO Ribbon Anodes
Uncoated Grade 1 titanium strip used as an electrical feeder bar to connect MMO titanium ribbon and mesh arrays in tank floor grids.
Manufactured from high-conductivity ASTM B265 Grade 1 uncoated titanium.
Standard dimensions of 12.7 mm / 15 mm width by 0.9 mm thickness.
Cross-welded to MMO ribbons using portable resistance spot welding units.
Distributes power evenly across rebars and tank bottoms eliminating voltage drop.
Maintains complete chemical compatibility with MMO ribbon anodes.
Conductor Bar Dimension | Material Specification | Electrical Resistance (Ω/m) |
|---|---|---|
12.7 mm x 0.9 mm | ASTM B265 Grade 1 Uncoated Titanium | 0.040 Ω/m |
15.0 mm x 0.9 mm | ASTM B265 Grade 1 Uncoated Titanium | 0.034 Ω/m |
Substrate Properties
Material | ASTM B265 Grade 1 Uncoated Titanium |
|---|---|
Coefficient of thermal expansion | 8.7 x 10⁻⁵ K⁻¹ |
Thermal conductivity at 20°C | 15.6 W/m°K |
Electrical resistivity at 20°C | 5.6 x 10⁻⁵ Ω-cm |
Modulus of elasticity | 105 GPa |
Tensile strength | 245 MPa |
Yield strength | 175 MPa |
Elongation | 24% minimum |
Conductor Bar Dimension | Material Specification | Electrical Resistance (Ω/m) |
|---|---|---|
12.7 mm x 0.9 mm | ASTM B265 Grade 1 Uncoated Titanium | 0.040 Ω/m |
15.0 mm x 0.9 mm | ASTM B265 Grade 1 Uncoated Titanium | 0.034 Ω/m |
Substrate Properties
Material | ASTM B265 Grade 1 Uncoated Titanium |
|---|---|
Coefficient of thermal expansion | 8.7 x 10⁻⁵ K⁻¹ |
Thermal conductivity at 20°C | 15.6 W/m°K |
Electrical resistivity at 20°C | 5.6 x 10⁻⁵ Ω-cm |
Modulus of elasticity | 105 GPa |
Tensile strength | 245 MPa |
Yield strength | 175 MPa |
Elongation | 24% minimum |
The Benefits of BSS Tech MMO Coated Titanium Anodes
Dimensionally Stable Geometry
Titanium substrate retains constant shape and surface area, preventing electrical resistance increases over time.
High Current Output Capacity
Discharges high current densities up to 750 A/m² in seawater while maintaining an ultra-low consumption rate.
Environment-Specific Catalyst
Formulated with Ir-Ta for oxygen-evolving soils/water or Ru-Ir for chlorine-evolving marine media.
Versatile Product Formats
Available in tubes, ribbons, mesh, wire, and matching conductor bars to suit any structural geometry.
30+ Year Operating Lifespan
Precision-controlled coating thickness guarantees reliable, continuous protection for high-value assets.
Targeted MMO Anode Applications
MMO titanium anodes are available in different forms and configurations to suit the operating conditions of each cathodic protection system. The choice of anode depends on factors such as the structure, current requirement, electrolyte, installation method and required design life.
BSS Technologies supplies MMO anode solutions for buried, submerged and concrete applications, including pipelines, storage tanks, deep well ground beds, marine structures, water intakes and internal vessel protection. Each arrangement is selected to provide suitable current distribution and reliable protection for the specific asset and site conditions.
Why Choose MMO Anodes from BSS Tech?
BSS Technologies controls every stage of MMO anode testing, cable assembly, and quality verification at our . Our AMPP/NACE-certified specialists calculate precise current demands, select optimal coating formulations, and perform helium leak testing on cable seals, delivering certified MMO titanium anode systems that protect your assets throughout their operational design life.
In house assembly guarantees complete cable seal water tightness.
Custom coating weights engineered for specific electrolyte media.
Fully compliant with global client & international standards.
In house AMPP/NACE specialists calculate exact ground bed output.
Applications of MMO Ti Anode
Areas
Deep Well Ground Beds
Storage Tank Bottoms
Reinforced Concrete Structures
Internal Process Vessels
Shallow Horizontal Ground Beds
Cross-Country Pipelines
Marine & Seawater Intakes
Offshore Platforms & Jackets
Marine Jetties & Piers
Heat Exchangers & Condensers
Subsea Structures & Manifolds
Refinery & Plant Piping Networks
Marine Ship Hulls
